SC5864C

Audio Processing SoC With High-Performance DSP

Description Main feature Internal block diagram Relevant package outline drawing

The SC8831C is a highly-integrated audio system-on-chip (SoC) integrated with Cortex-M0 processor for low power management, and a high performance audio dedicated DSP for audio sound effect processing. Furthermore, it is also integrated with SAR-ADC, USB, SD/MMC controllers and audio CODEC.

Main feature

Architecture

5-level pipelines, maximum operating frequency: 160MHz;
32bit/16bit multiplication: MAC16, MUL16, MUL32;
32bit integer division;
Single-precision floating-point operation;
Dedicated hardware audio acceleration engine;
32KB instruction/data Cache, WB/WT supported;
Local SRAM;

Cortex-M0

80MHz High performance 32bit Cortex-M0 core, maximum operating frequency: 80MHz;
Embedded 8KB Cache, four address areas, independently configure;
Supports frequency reduction, a quarter of maximum bus frequency;

Clock & Power Manager

External 12MHz oscillators;
Built-in RCL and RCH;
Built-in System PLL, Audio PLL and USB1.1 PLL;
Built-in double 1.2V LDO;
Multi low-power operating modes supported, such as frequency reduction, STOP mode.

Memory Controller

SPI flash controller

Supports SPI Flash 1/2/4-wire modes;
Core runs directly in SPI Flash;

SRAM

Embedded 240KB SRAM, system 32KB+16KB, DSP 192KB;
Supports Byte, Half-word, Word access;

SDRAM controller

High-efficiency SDRAM Interface, supports 16-bit data operating;
Supports SDRAM low-power modes, such as self-refresh, power down, etc.;
Packaged with 2MB SDRAM;

Peripherals

Audio CODEC

Built-in two-set stereo Audio ADCs; SNR 100db (A-weight, Line in);
Supports stereo analog MIC input and ALC;
Built-in stereo Audio DAC, SNR 100db(A-weight, Line out);

USB_HS

Built-in high-speed PHY;
Compliance with USB2.0 standard;
Supports control, bulk, interrupt, and synchronous transfer;
Built-in 2KB SRAM;
Built-in Normal and Scatter-Gather DMA transfer;

SD/MMC

Compliance with SD2.0 and MMC4.3 standards;
Supports 1-bit mode;
Built-in Normal and chained DMA transfer;

UARTx3

3 UART modules provided;
High-speed UART1 integrated with 64-byte FIFO, UART2 with 8-byte FIFO, while UART3 with 16-byte FIFO;
Programmable data bits and stop bit;
Parity check supported or no check;
Supports receiving/sending FIFO interrupt;
PDMA mode supported by UART1/3;

Supports standard speed, fast speed, and high speed modes;
Supports Master and Slave modes;

Supports SPI standard 4-wire protocol;
Embedded independent 8x32 receive and send buffers;
Supports PDMA mode;

Supports preset frequency division;
16-bit counting accuracy;

6-channel analog inputs, 10bit accuracy;

GPIO

Two GPIO controllers;
Independent pull-up resistor enable;
Selectable drive strength (2/4/8/24mA)；
Supports configurable interrupt of each IO, edge or level triggered;

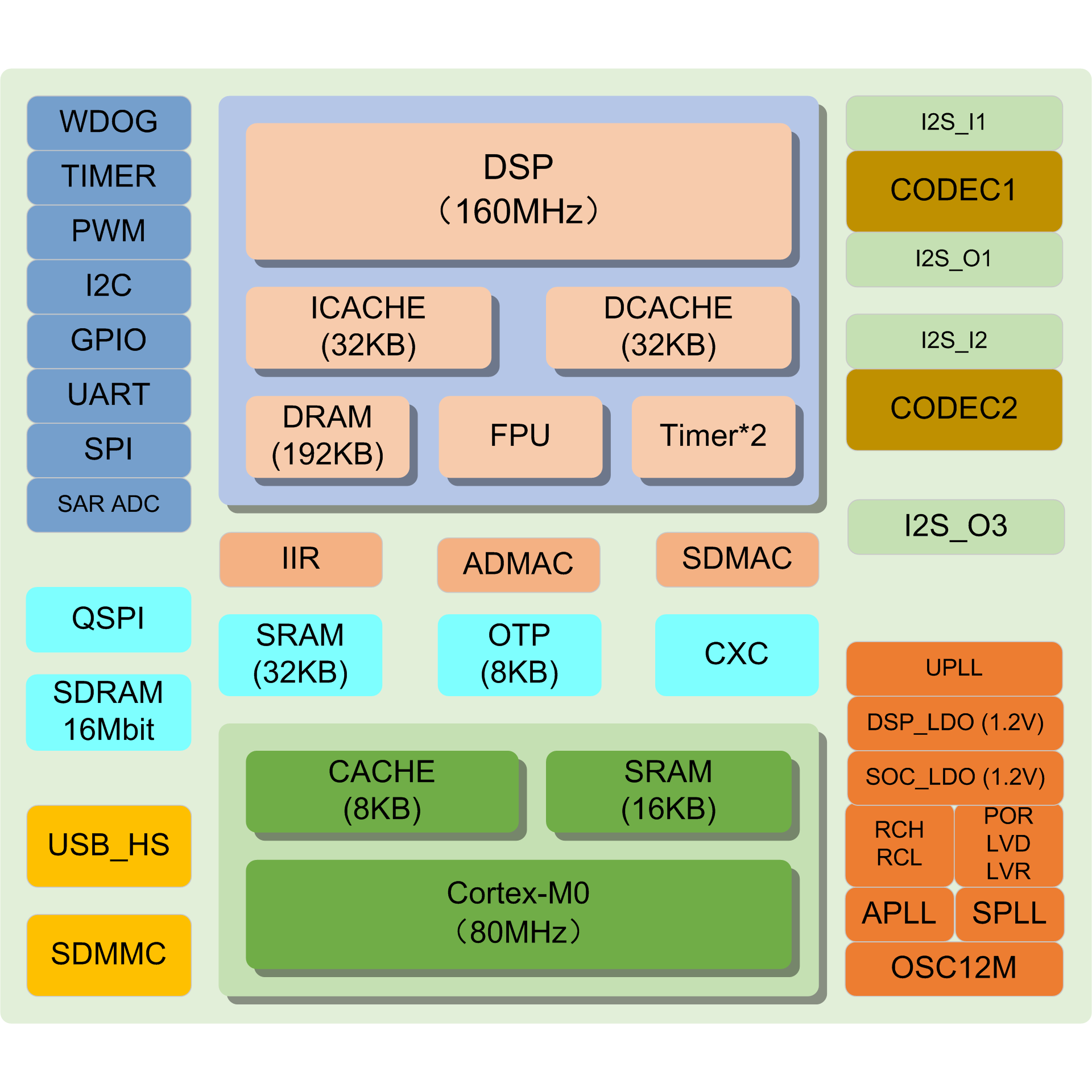

Block Diagram

Packages

QFN-64-8×8×0.75-0.4
