SD59D24A

USB POWER DELIVERY (PD) CONTROLLER FOR MOBILE POWER SUPPLY

Description Main feature Product specification classification Technical documentation Relevant package outline drawing

The SD59D24A is a highly integrated protocol and power control IC for mobile power supply. It integrates 4-channel USB ports (one port C in maximum) and is compatible with fast charging protocols such as PD3.2 SPR AVS, PPS, QC4.0+, FCP, SCP, SFCP, AFC, BC1.2, APPLE, VOOC.

Built-in 4-channel dead-time controllable PWM drive control is for realizing bidirectional, boost/buck switching power supply conversion. Built-in high-precision ADC realizes charge and discharge management of lithium battery.

SD59D24A integrates abundant functions, providing complete solution for fast charging mobile power supply. The periphery of the system is simple, which greatly reduces BOM cost.

Main feature

Operating voltage range: 3.3V~40V
Protocol support PD3.2 SPR AVS, PPS, QC4.0+, FCP, SCP, SFCP, AFC, BC1.2, APPLE, VOOC
Support protocol parsing of 1 pairs of CC ports and 4 pairs of DD ports
4-channel PWM Drive Control with Controllable Dead Zone, Support 100~500KHz PWM switching frequency settable
Current sampling and two-way voltage sampling
3-way load switch control
I2C/UART communication
LED indication and digital tube display
Mobile phone access detection and removal detection
Support STOP low power dissipation mode
Built-in over voltage protection, over current protection and over temperature protection

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SD59D24A	QFN-52-6X6X0.75-0.4	SD59D24A	Halogen free	Tray
SD59D24ATR	QFN-52-6X6X0.75-0.4	SD59D24A	Halogen free	Tape&Reel

Documents

title	Types of	Size (KB)	date	Download the latest English version
SD59D24A		0	2024-05-28	SD59D24A Brief Datasheet

Packages

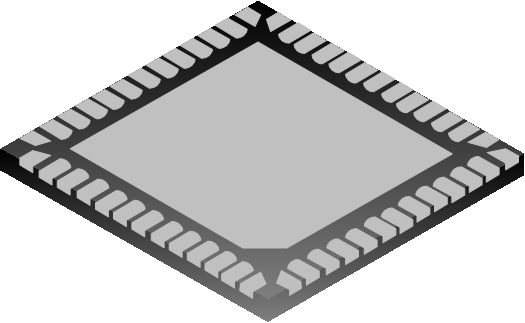

QFN-52-6×6×0.75-0.4（單基島）
