SD20M60AC8

600V/20A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SD20M60AC8 is a 3-phase brushless DC motor driver with high integration and high reliability for medium power inverter driving such as air condition, dishwasher, and industrial sewing machine. It has embedded six low-loss IGBT and three high-speed half-bridge gate drivers with high voltage.

The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

SD20M60AC8 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.

Main feature

Built-in six low-loss 600V/20A IGBT;
Built-in high-voltage gate driver;
Built-in under voltage, over temperature and over current protections;
Built-in bootstrap diode;
Compatible with 3.3V, 5V MCU interface, active high;
Three independent negative DC terminal for inverter current detection;
Alarm signal: for low-side under voltage and short circuit protections;
Package in DBC design with low thermal resistance;
Insulation level: 2500Vrms/min

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SD20M60AC8	DIP-27H	SD20M60AC8	Halogen free	Tube

Block Diagram

SD20M60AC8 (1440&720)PS 中英文同.png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SD20M60AC8		0	2023-07-19	SD20M60AC8 Brief Datasheet

Packages

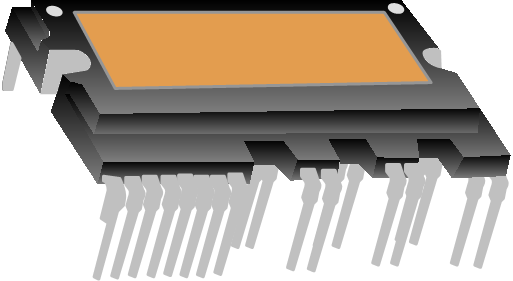

DIP-27H
