SDM10C60TA5B1

600V/10A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SDM10C60TA5B1 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as fan, pump and refrigerator. It has embedded six low-loss IGBTs and 3-phase half-bridge gate drivers with high voltage.

The under voltage, short circuit protections and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

SDM10C60TA5B1 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.

Main feature

Built-in low-loss 600V/10A IGBTs
Built-in high-voltage integrated circuit of gate driver
Built-in under voltage protections, over current protection and temperature output
Built-in shut-down input
Built-in inter-lock function
Built-in bootstrap diode with current limiting resistor
Compatible with 3.3V, 5V MCU interface, active high
Three independent negative DC terminals for inverter current detection
Isolation rating: 1500Vrms/min

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SDM10C60TA5B1	DIP-25E	SDM10C60TA5B1	Halogen free	Tube

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SDM10C60TA5B1		0	2023-06-27	SDM10C60TA5B1 Brief Datasheet

Packages

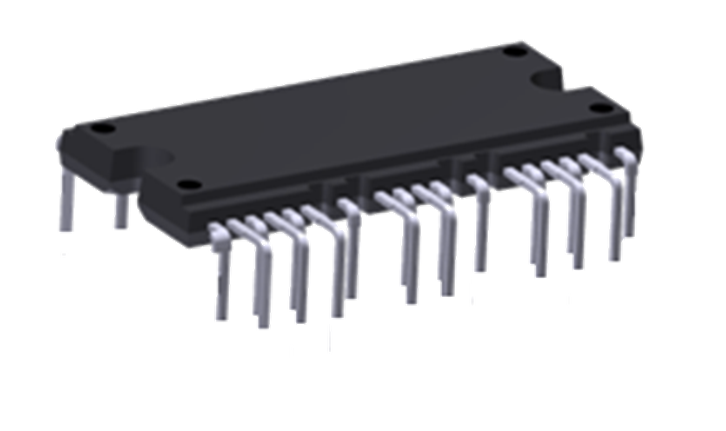

DIP-25E
