SLP74LVC2T45

DUAL-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS

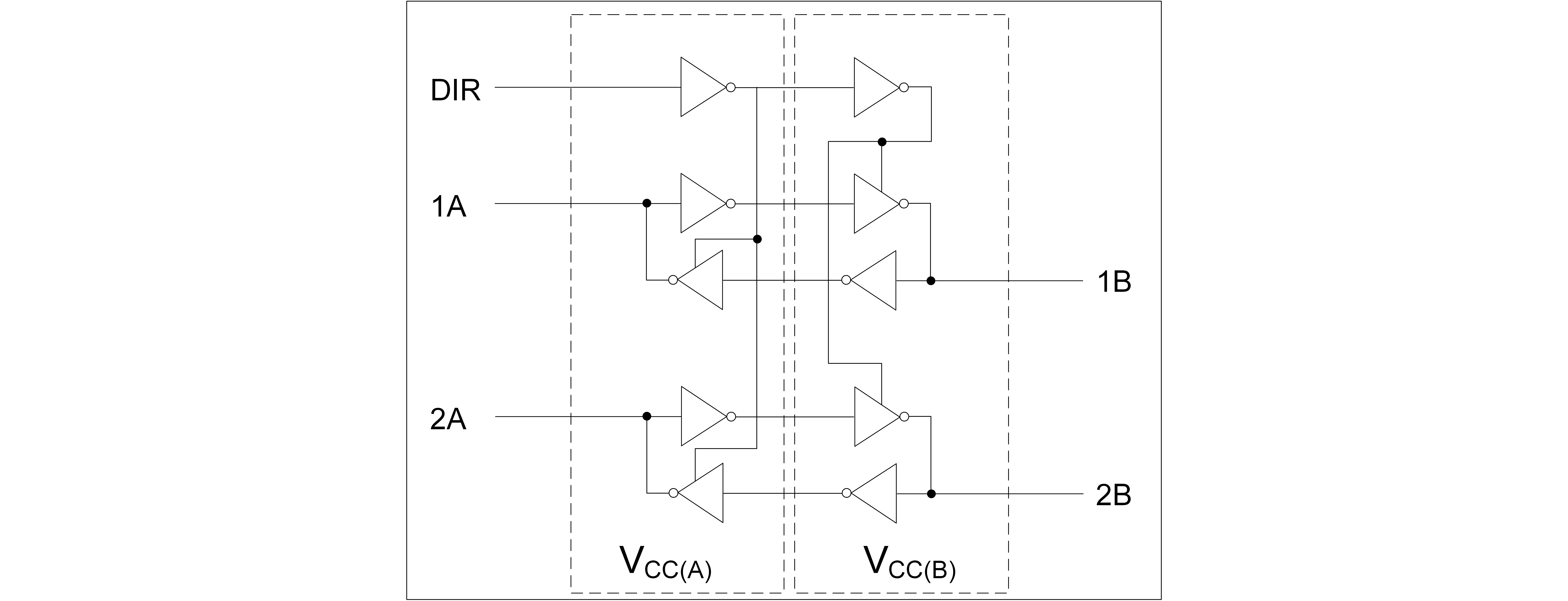

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74LVC2T45 is a dual-bit transceiver that enables bidirectional level translation. This device uses two separate configurable power-supply rails. Both V_CC(A) and V_CC(B) can be supplied at any voltage between 1.65V and 5.5V making the device suitable for translating between any of the low voltage nodes (1.8V, 2.5V, 3.3V and 5V). Pins nA and DIR are referenced to V_CC(A) and pins nB are referenced to V_CC(B).

The SLP74LVC2T45 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input.

The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down. In suspend mode when either V_CC(A) or V_CC(B) are at GND level, both nA and nB are in the high-impedance OFF-state.

Main feature
