SDM06LF60TA2

600V/6A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SDM06LF60TA2 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as fan, pump and refrigerator. It has embedded six low-loss IGBTs and 3-phase full-bridge gate drivers with high voltage.

The under voltage, short circuit, over temperature protections and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

SDM06LF60TA2 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.

Main feature

Built-in low-loss 600V/6A IGBT
Built-in high-voltage integrated circuit of gate driver
Built-in under voltage protection, over temperature protection, over current protection and temperature output
Built-in bootstrap diode with current limiting resistor
Compatible with 3.3V, 5V MCU interface, active high
Three independent negative DC terminal for inverter current detection
Alarm signal: for low-side under voltage, over temperature and short circuit protections
Insulation level: 2000Vrms/min

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SDM06LF60TA2	SDIP-26D	SDM06LF60TA2	Halogen Free	Tube

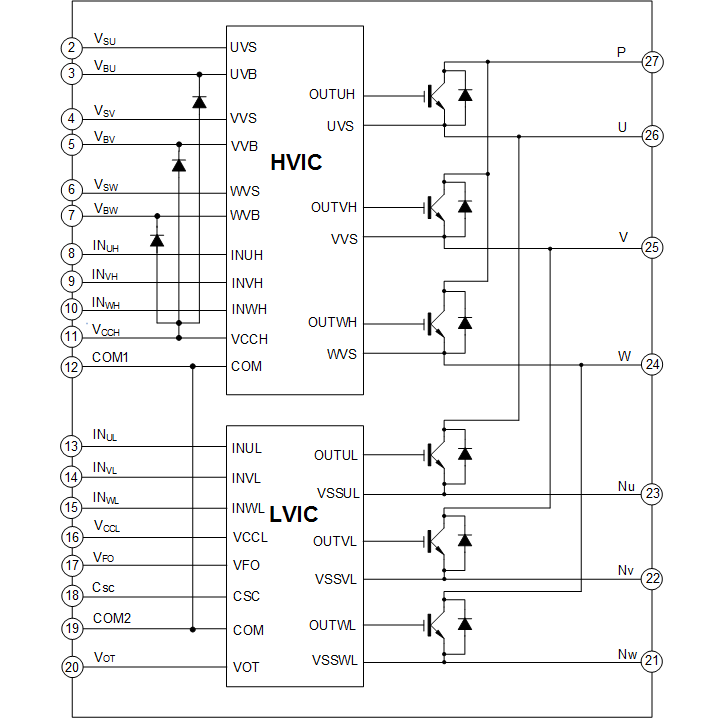

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SDM06LF60TA2		0	2023-03-02	SDM06LF60TA2 Brief Datasheet

Packages

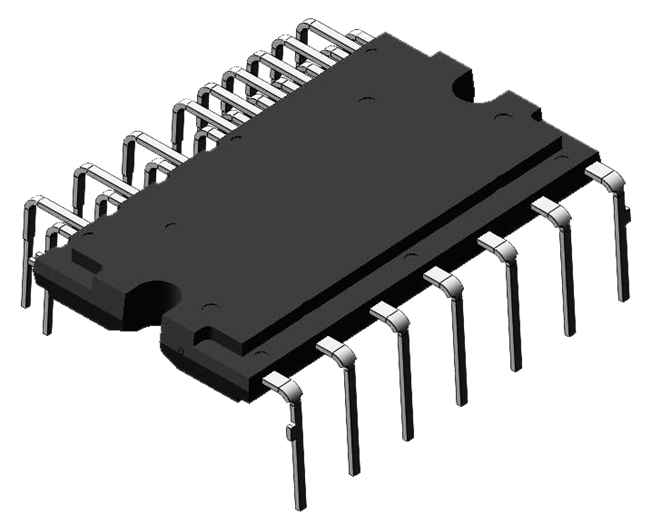

SDIP -26D
