SLP74LVC2G04

DUAL INVERTER

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74LVC2G04 is a dual inverting buffer designed for 1.65V to 5.5V V_CC operation. Inputs can be driven from either 3.3V or 5V devices. The device performs the function Y=A(—).

The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.

Main feature

Supports from 1.65V to 5.5V operation
Inputs accept voltages to 5.5V
±24mA output driver (V_CC = 3V)
Direct interface with TTL levels
ESD protection:

HBM exceeds 2000V
CDM exceeds 1000V

Latch-up performance exceeds 250mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74LVC2G04KCTR	SOT-23-6L	2G04	Halogen free	Tape & Reel
SLP74LVC2G04KETR	SOT-363-6L	S5	Halogen free	Tape & Reel

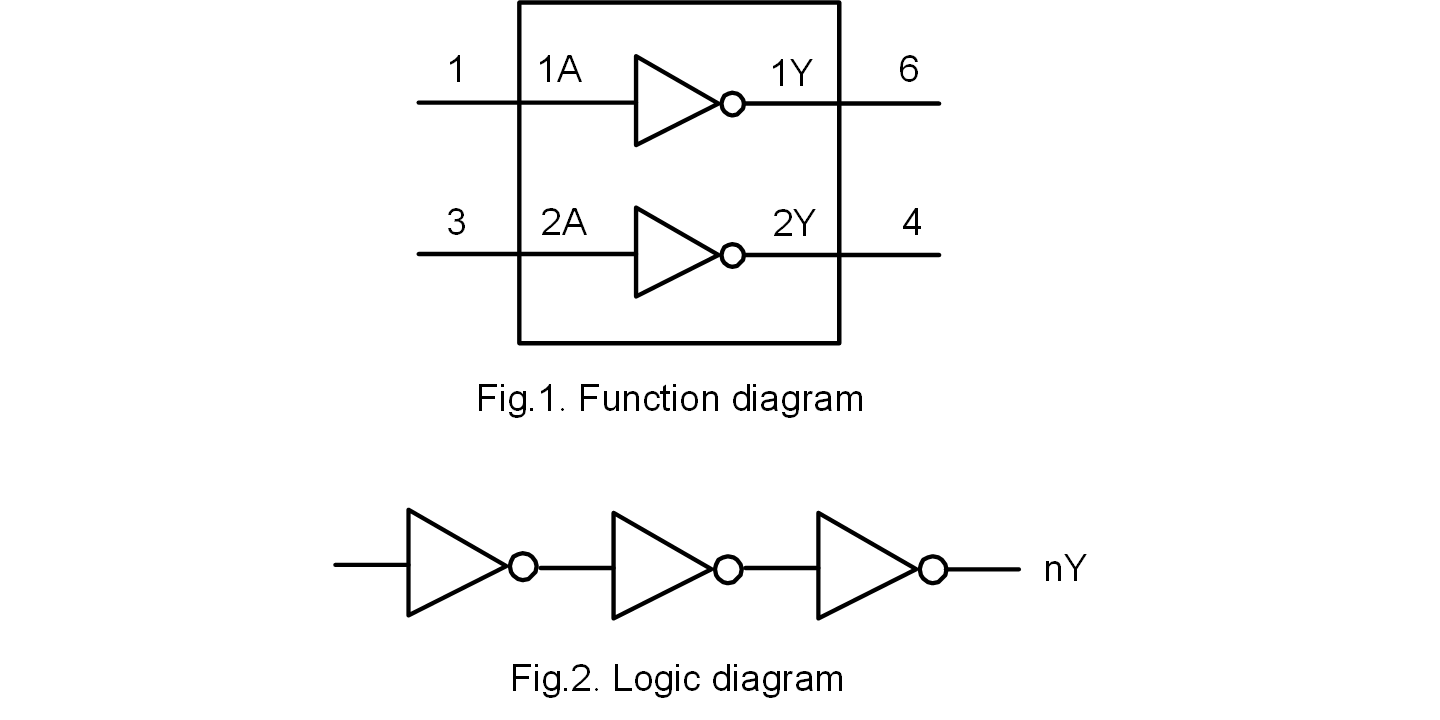

Block Diagram


Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74LVC2G04		0	2023-01-04	SLP74LVC2G04 Brief Datasheet

Packages

SOT-363-6L

SOT-23-6L
