SLP74XS0102

2-BIT AUTO DIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR DUAL SUPPLY AND OPEN DRAIN

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74XS0102 is a directionless voltage-level translator specifically designed for translating logic voltage levels. It features two 2-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (V_CC(A) and V_CC(B)).The A port is designed to track V_CC(A). V_CC(A)accepts any supply voltage from 1.65V to 5.5V. V_CC(A) must be less than or equal to V_CC(B). The B port is designed to track V_CC(B). V_CC(B) accepts any supply voltage from 2.3V to 5.5V. This allows the device suitable for translating between any of the voltage nodes (1.8V, 2.5V, 3.3V and 5.0V).

The SLP74XS0102 is designed so that the OE input circuit is supplied by V_CCA. This device is fully specified for partial power-down applications using I_OFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Main feature

No direction-control signal needed
Wide supply voltage range:
V_CC(A): 1.65V to 5.5V and V_CC(B): 2.3V to 5.5V (V_CC(A)≤V_CC(B))
Max data rates:

Push-pull: 24Mbps

Input accept voltages up to 5.5V
IOFF circuitry provides partial Power-down mode operation
ESD protection:

HBM 4kV

Latch-up performance 100mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74XS0102JWTR	VSSOP-8-100-0.5	102	Halogen free	Tape & Reel
SLP74XS0102KDTR	SOT-23-8L	102	Halogen free	Tape & Reel

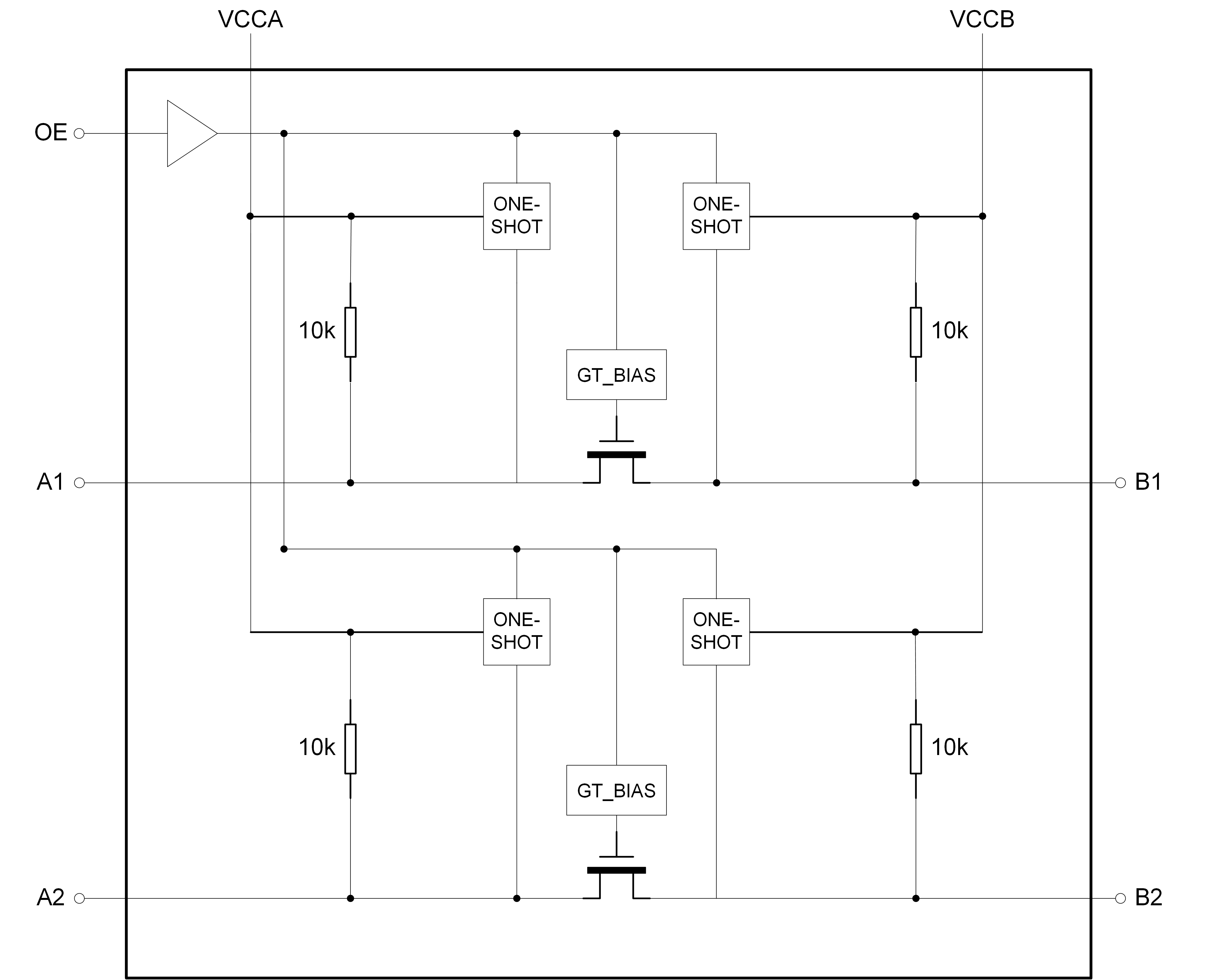

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74XS0102		0	2023-01-03	SLP74XS0102 Brief Datasheet

Packages

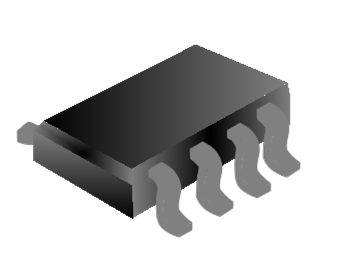

SOT-23-8L

VSSOP-8-100-0.5
