SD7880A

SINGLE STAGE PRIMARY SIDE REGULATION HIGH POWER FACTOR LED DRIVER IC WITH PWM/LINEAR DIMMING

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SD7880A is a single stage primary side regulation high power factor LED driver with dimming function, it has PWM and linear dimming functions, with dimming depth up to 5%, it is mainly used in isolated flyback smart LED lighting system.

The SD7880A provides accurate constant current control and operates in boundary conduction mode (BCM) with high efficiency. It adopts primary side regulation eliminating the opto-couple, secondary feedback control and loop compensation, which effectively simplifies the design and reduces the system cost.

The SD7880A provides complete protections such as short LED protection, open LED protection and over temperature protection, etc.

Main feature

Dimmable range of 5% to 100%
PSR flyback topology
Boundary conduction mode
Low start-up current
Leading edge blanking
VCC over voltage protection
VCC under voltage lockout
Over temperature protection
Short LED protection and Open LED protection

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SD7880A	SOP-8-225-1.27	/	Halogen free	Tube
SD7880ATR	SOP-8-225-1.27	/	Halogen free	Tape & reel

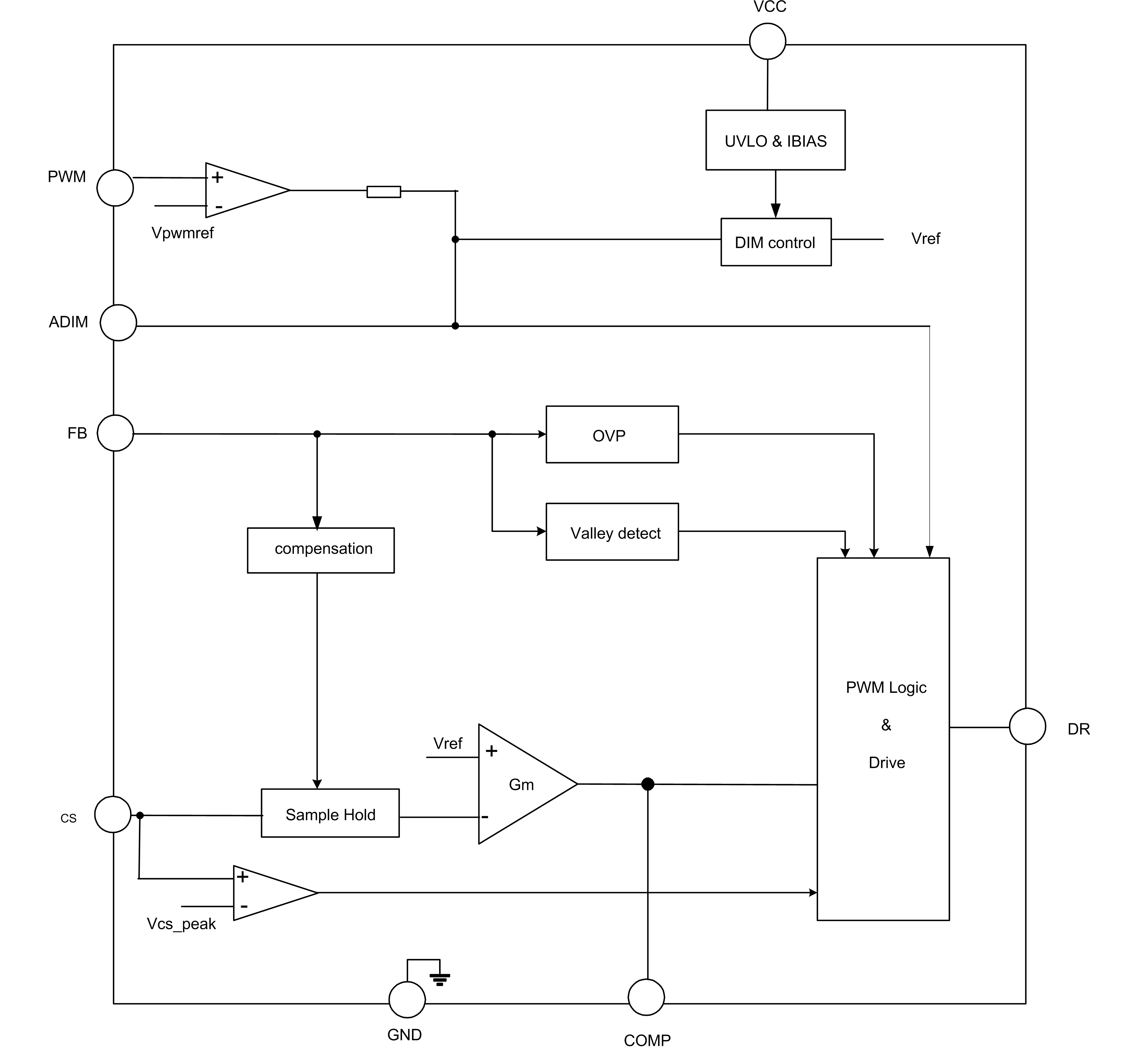

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SD7880A		0	2020-04-08	SD7880A Brief Datasheet

Packages

SOP-8-225-1.27
