SD778XD

LOW PFC NON ISOLATED BUCK CONTROLLER FOR LED DRIVER

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SD778XD is a low PFC non isolated buck controller, it has a built-in high voltage power MOSFET, is used together with a pre-stage APFC boost circuit to achieve two stage no flicker application.

The SD778XD provides accurate constant current control and operates in boundary conduction mode (BCM). The SD778XD provides complete protections such as short LED protection, open LED protection and over temperature protection, etc.

Main feature

Non isolated buck topology
Boundary Conduction Mode
Built-in 500V high voltage power MOSFET
Leading edge blanking
VCC under voltage lockout
Over temperature protection
Cycle by cycle current limiting
Short LED protection and Open LED protection

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SD7782D	DIP-7-300-2.54	SD7782D	Halogen free	Tube
SD7784D	DIP-7-300-2.54	SD7784D	Halogen free	Tube

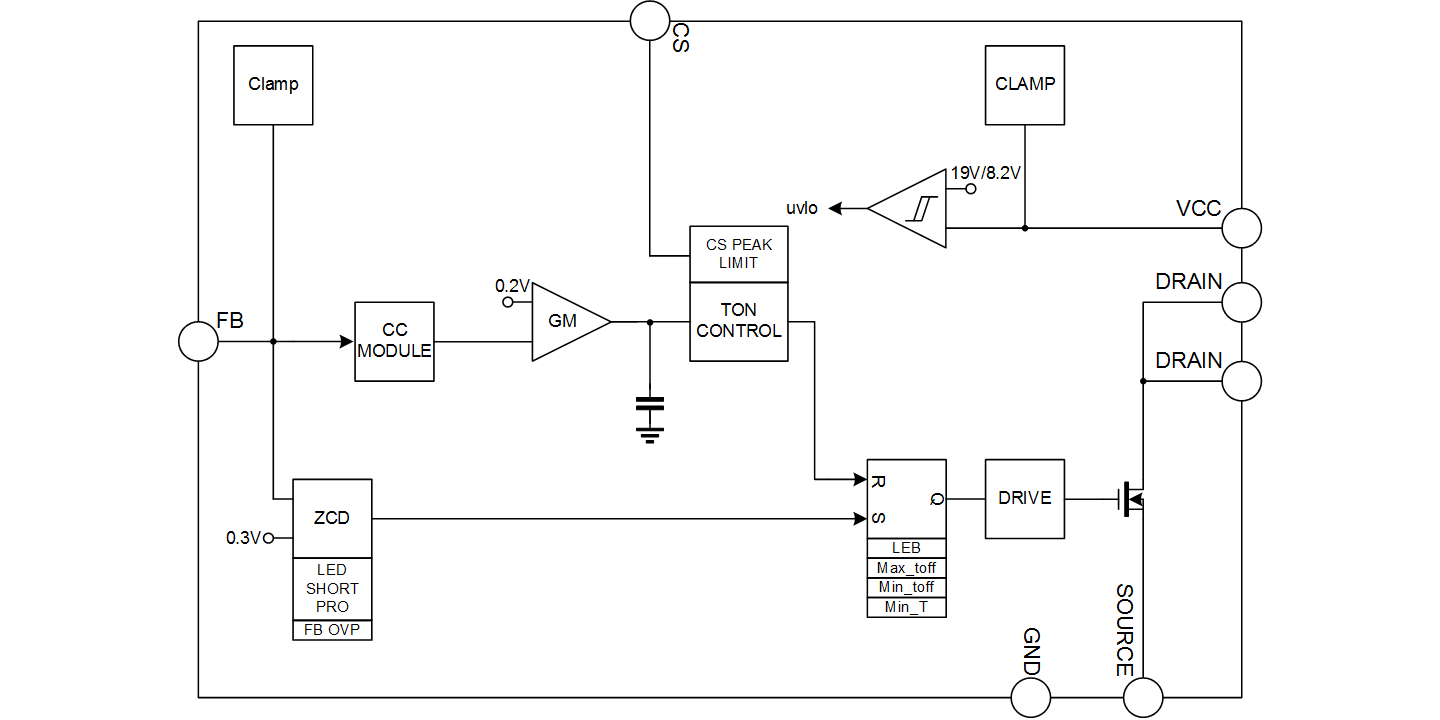

Block Diagram


Documents

title	Types of	Size (KB)	date	Download the latest English version
SD778XD		0	2022-10-25	SD778XD Brief Datasheet

Packages

DIP-7-300-2.54
