SD6832

CURRENT MODE PWM+PFM CONTROLLER WITH BUILT-IN HIGH VOLTAGE MOSFET

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SD6832 is current mode PWM+PFM controller with built-in high-voltage MOSFET used for SMPS.

It features low standby power and low start current. In standby mode, the circuit enters burst mode to reduce the standby power dissipation.

The switch frequency is 25~67KHz decided by the load with jitter frequency for low EMI.

Built-in peak current compensation circuit makes the limit peak current stable even with different input AC voltage. Maximum peak current compensation during power-on reduces pressure on transformer to avoid saturation, the peak current compensation will decrease for balance after power-on. Limit output current can be adjusted through the resistor connected to CS.

It integrates various protections such as undervoltage lockout, overvoltage protection, overload protection, leading edge blanking, primary winding overcurrent protection and thermal shutdown. The circuit will restart until normal if protection occurs.

Main feature

Energy Star 2.0 standard
Lower start-up current (3?A)
Various switching frequency following load for the high efficiency
Frequency jitter for low EMI
Overvoltage, primary winding overcurrent, overload and over temperature protections.
External peak current sense resistor
Undervoltage lockout
Built-in high voltage MOSFET
Auto restart mode
Peak current compensation
Maximum peak current compensation for initialization to realize the soft start function.
Burst mode
Cycle by cycle current limit

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SD6832	DIP-8-300-2.54	SD6832	Halogen free	Tube

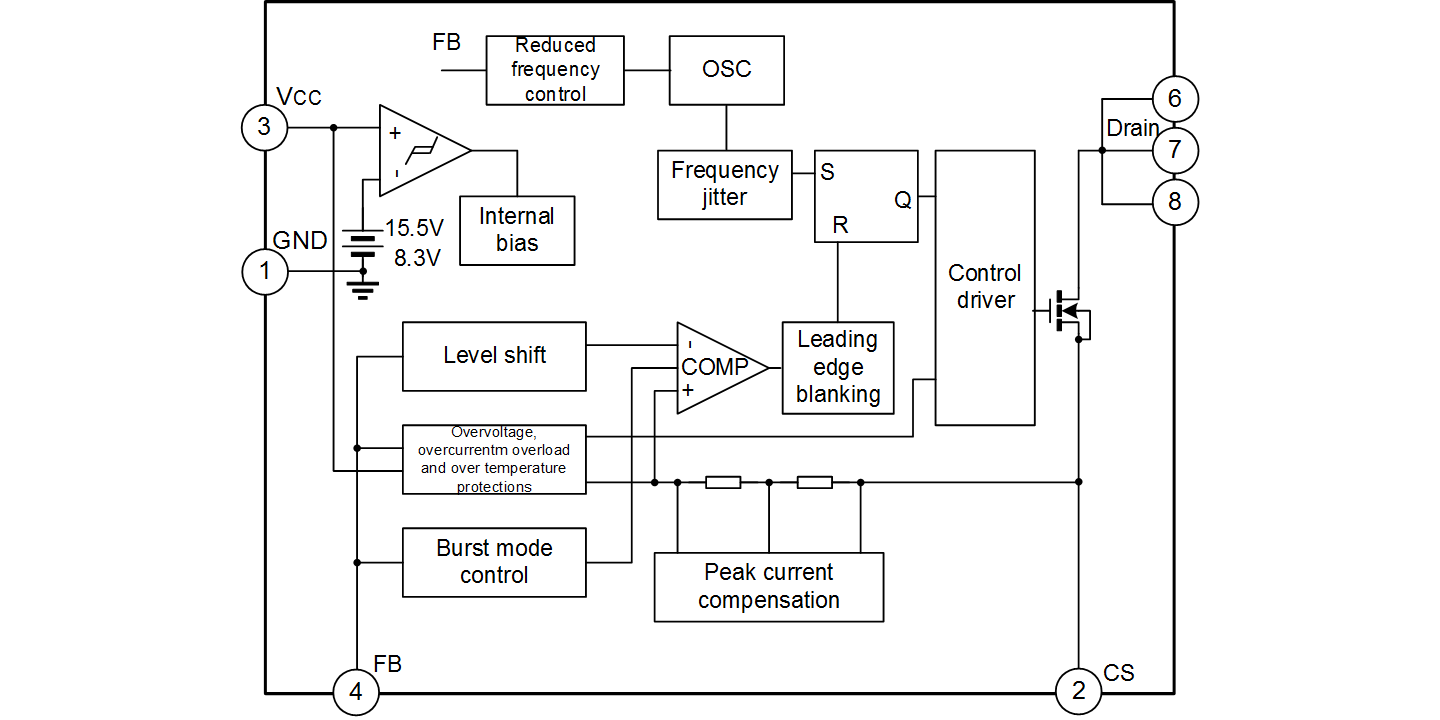

Block Diagram

英文 .png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SD6832		0	2022-08-24	SD6832 Brief Datasheet
