SLP74AVC2T45

2-BIT DUAL-SUPPLY TRANSCEIVER WITH VOLTAGE LEVEL TRANSLATOR AND 3-STATE OUTPUTS

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74AVC2T45 is a 2-bit non-inverting bus transceiver uses two separate configurable power-supply rails. It features two data input-output ports(nA and nB), a direction control input(DIR) and dual supply pins (V_CC(A) and V_CC(B)). Both V_CC(A) and V_CC(B) can be supplied at any voltage between 0.8V and 3.6V making the device suitable for translating between any of the low voltage nodes(0.8V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V). Pins nA and DIR are referenced to V_CC(A) and pins nB are referenced to V_CC(B).

The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down.

When either V_CC(A) or V_CC(B) are at GND level, both A and B are in the high-impedance OFF-state.

Main feature

Wide supply voltage range:

V_CC(A): 0.8V to 3.6V
V_CC(B): 0.8V to 3.6V

I/Os are 3.6V Tolerant
I_OFFcircuitry provides partial Power-down mode operation
Maximum data rates:

300 Mbps (1.8V to 3.3V translation)
220 Mbps (<1.8V to 3.3V translation)
200 Mbps (translate to 2.5V or 1.8V)
150 Mbps (translate to 1.5V)
100 Mbps (translate to 1.2V)

ESD protection:

HBM Exceeds 8000V
CDM Exceeds 1000V

Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type
SLP74AVC2T45JMTR	MSOP-8-185-0.65	AC2T45	Halogen free	Tape & Reel
SLP74AVC2T45JQTR	TSSOP-8N-150-0.65	A2T45	無鹵	編帶
SLP74AVC2T45JWTR	VSSOP-8-100-0.5	2T45	Halogen Free	Tape & Reel

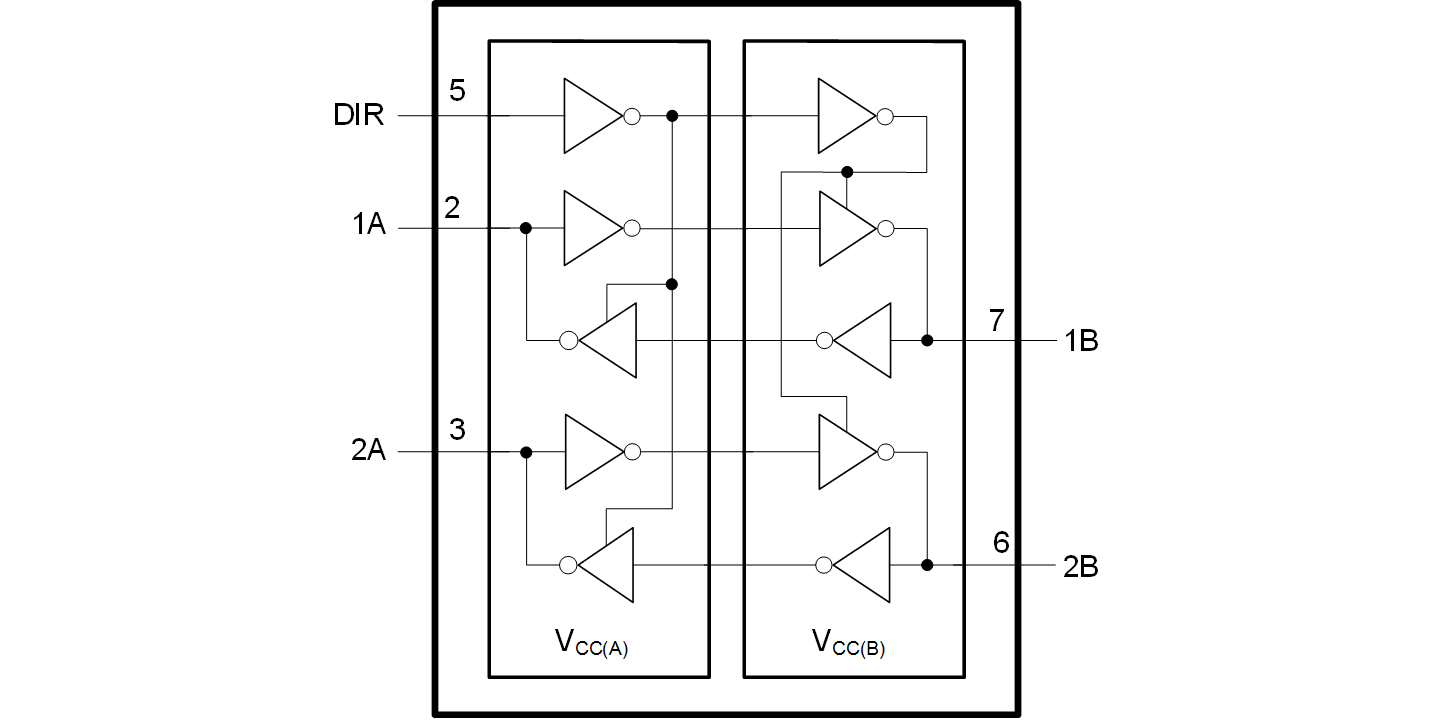

Block Diagram

SLP74AVC2T45 中英文同(1440&720).png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74AVC2T45		0	2022-08-23	SLP74AVC2T45 Brief Datasheet

Packages

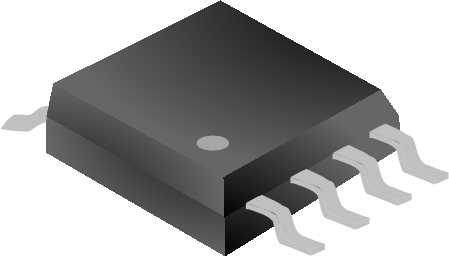

TSSOP-8N-150-0.65

MSOP-8-185-0.65
