SLP74LVC1G17

SINGLE SCHMITT TRIGGER BUFFER

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The 74LVC1G17 provides a buffer function with Schmitt trigger input. It is capable of transforming slowly changing input signals into sharply defined outputs.

The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment.

This device is fully specified for partial power-down applications using I_OFF. The I_OFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Main feature

Supports 1.65V to 5.5V V_CC operation
±24mA output drive at V_CC=3.0V
CMOS low power consumption
Direct interface with TTL levels
Input accept voltages up to 5V
ESD protection:

HBM Exceeds 2000V
CDM Exceeds 1000V

Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74LVC1G17KMTR	SOT-353-5L	SP	Halogen free	Tape & Reel
SLP74LVC1G17KBTR	SOT-23-5L	1G17	Halogen free	Tape & Reel

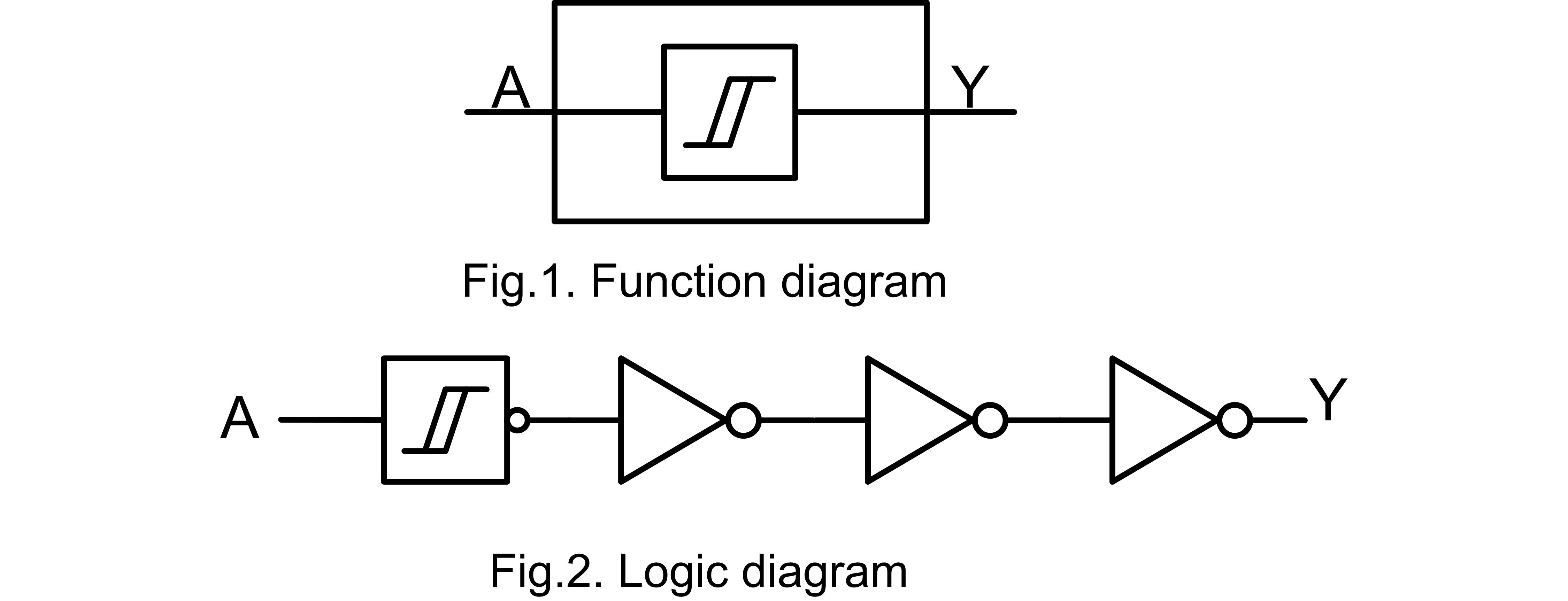

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74LVC1G17		0	2022-05-17	SLP74LVC1G17 Brief Datasheet

Packages

SOT-353-5L

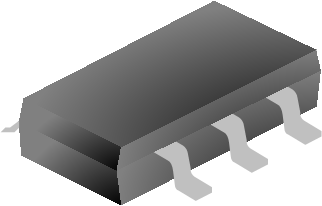

SOT-23-5L
