SLP74LVC2G07

BUFFERS WITH OPEN-DRAIN OUTPUTS

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74LVC2G07 is a dual buffer with open-drain outputs designed for 1.65V to 5.5V VCC operation.

The inputs can be driven from either 3.3V or 5V devices. The output is an open drain driver and can implement active wired-AND or wired-OR by connect to other open-drain outputs.

The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.

Main feature

Supports from 1.65V to 5.5V operation
Input/output tolerant to 5V logic
-24mA output driver (VCC=3V)
Direct interface with TTL levels
ESD protection:

HBM exceeds 2000V
CDM exceeds 1000V

Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74LVC2G07KETR	SOT-363-6L	SY	Halogen free	Tape & Reel

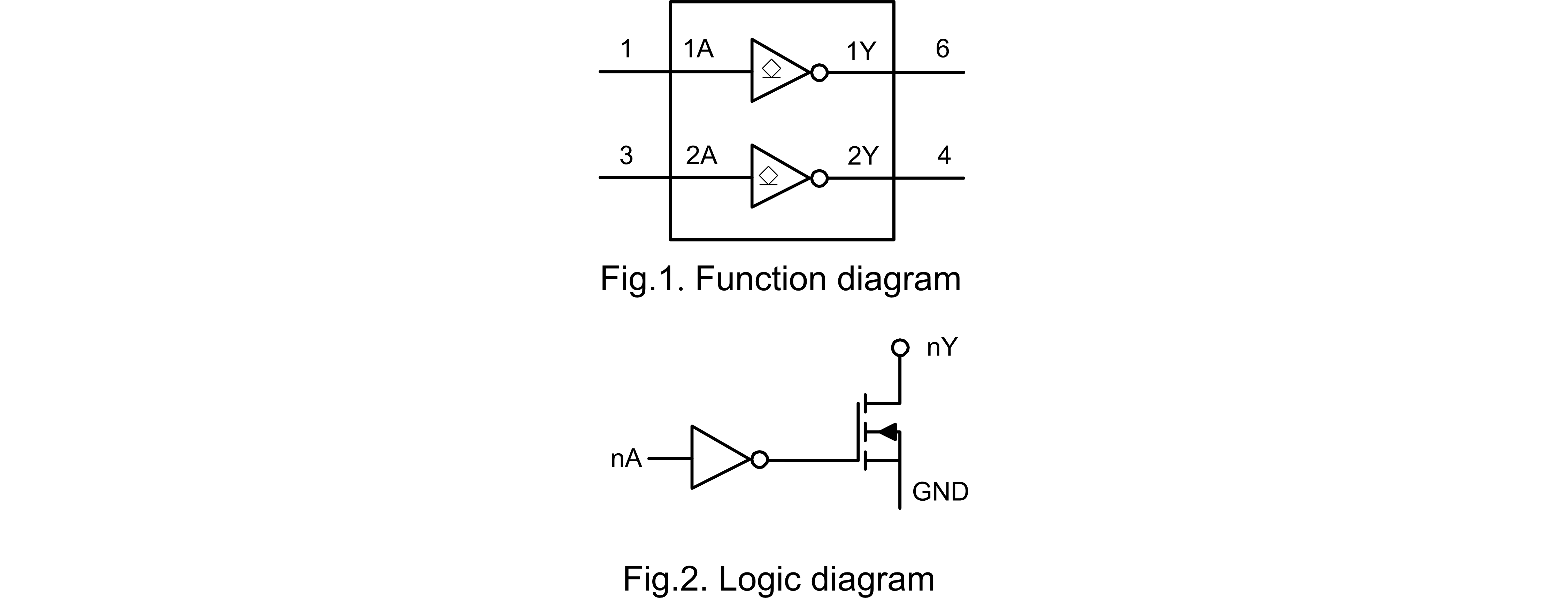

Block Diagram

SLP74LVC2G07 英文.png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74LVC2G07		0	2022-04-24	SLP74LVC2G07 Brief Datasheet

Packages

SOT-363-6L
