SLP74LVC74A

DUAL POSITIVE-EDGE TRIGGER D-TYPE FLIP-FLOP WITH SET AND RESET

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74LVC74A is a low-power dual positive-edge-triggered D-type flip-flop With set and reset.

A low level at the set S(—)D or reset R(—)D inputs sets or resets the outputs, regardless of the levels of the other inputs. When S(—)D and R(—)D are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Information on the data input is transferred to the Q output on the LOW-to-HIGH transition of the clock pulse. The D input must be stable one set-up time prior to the LOW-to-HIGH clock transition for predictable operation.

Schmitt trigger action at all inputs makes the circuit highly tolerant of slower input rise and fall times.

Main feature

Wide supply voltage range from 1.2V to 3.6V
Inputs Accept Voltages to 5.5V
ESD protection:

HBM Exceeds 2000V
CDM Exceeds 1000V

Latch-up performance exceeds 250mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74LVC74AJY	TSSOP-14-225-0.65	LVC74A	Halogen free	Tube
SLP74LVC74AJYTR	TSSOP-14-225-0.65	LVC74A	Halogen free	Tape & Reel

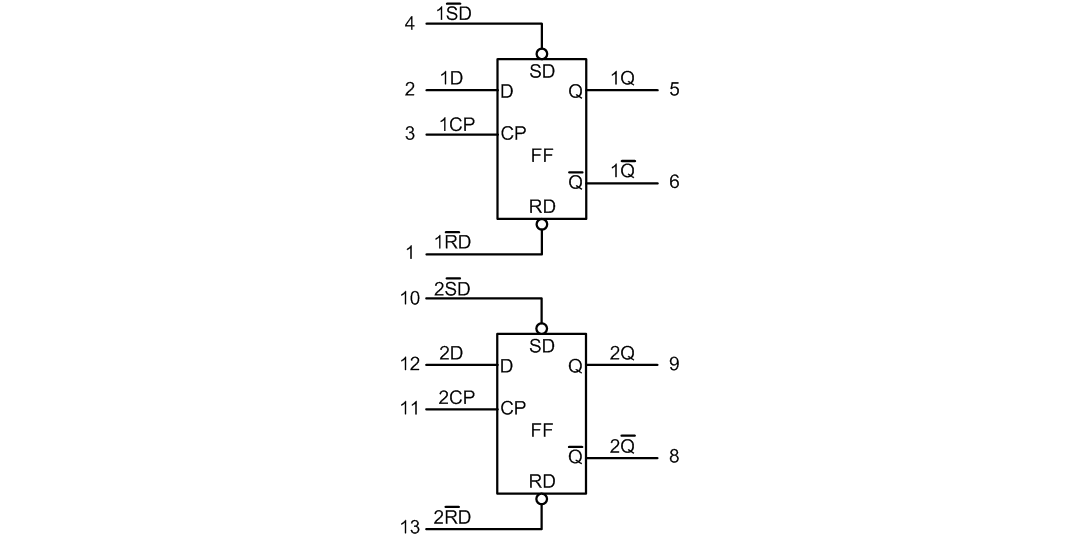

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74LVC74A		0	2022-03-18	SLP74LVC74A Brief Datasheet

Packages

TSSOP-14-225-0.65
