SLP74HC165

8-BIT PARALLEL-IN, SERIAL-OUT SHIFT REGISTER

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74HC165 is an 8-bit serial or parallel-in/serial-out shift register.

The device features a serial data input (DS), eight parallel data inputs (D0 to D7) and two complementary serial outputs (Q7 and Q7(———). Parallel-in access to each stage is provided by eight individual direct data (D0 to D7) inputs that are enabled by a low level at the parallel load input (PL(———). When PL(——— is HIGH data enters the register serially at DS. When the clock enable input (CE(———) is LOW data is shifted on the LOW-to-HIGH transitions of the CP input. A HIGH on CE(———will disable the CP input. Inputs are overvoltage tolerant to 15V. This enables the device to be used in HIGH-to-LOW level shifting applications.

Main feature

Synchronous serial inputs
Asynchronous 8-bit parallel load
CMOS input levels
ESD protection:

HBM Exceeds 2000V
CDM Exceeds 1000V

Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74HC165EC	SOP-16-225-1.27	74HC165	Halogen free	Tube
SLP74HC165ECTR	SOP-16-225-1.27	74HC165	Halogen free	Tape & Reel

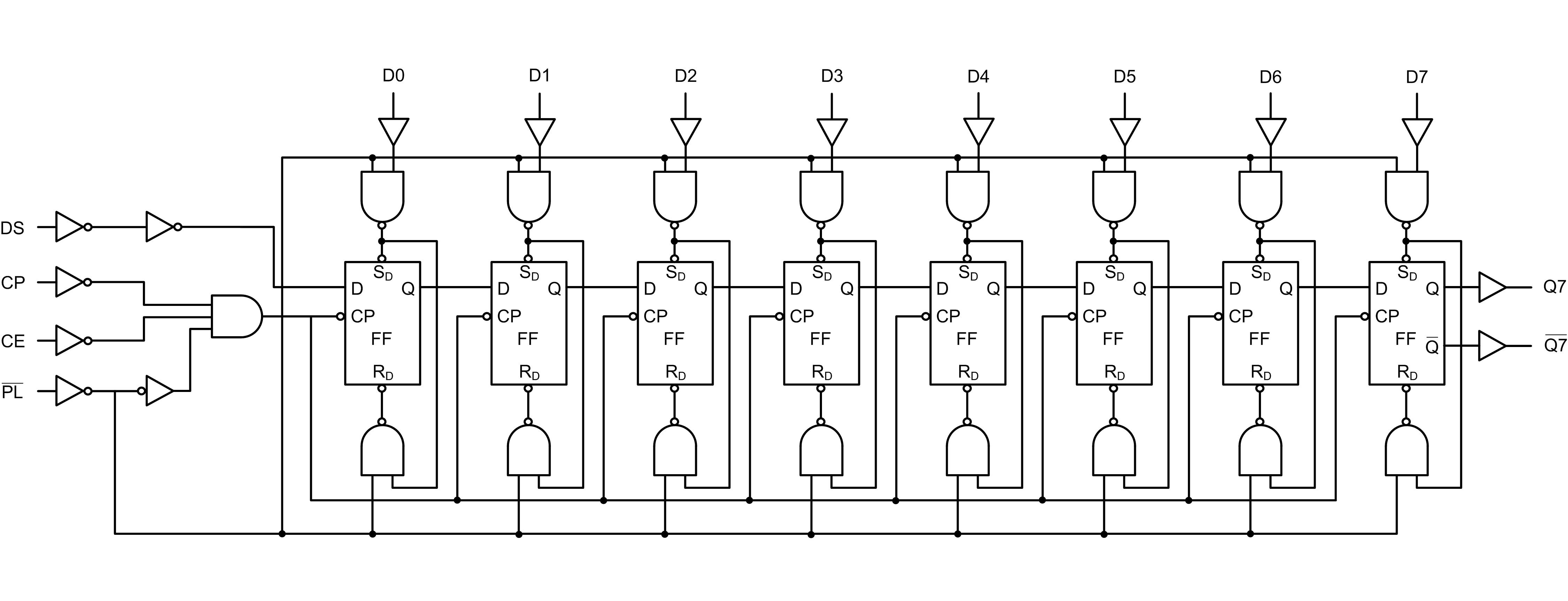

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74HC165		0	2022-02-28	SLP74HC165 Brief Datasheet

Packages

SOP-16-225-1.27
