SLP74LVC1G08

SINGLE 2-INPUT AND GATE

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74LVC1G08 is designed for 1.65V to 5.5V V_CC operation, performs the Boolean function Y=A ? B.

Inputs can be driven from either 3.3V or 5V devices. This feature allow the use of this device in a mixed 3.3V and 5V system environment.

Schmitt trigger action at all inputs makes the circuit tolerant for slower input rise and fall time.

This device is fully specified for partial power-down applications using I_OFF. The I_OFF circuitry disables the output, preventing damaging backflow current through the device when it is powered down.

Main feature

Supports 1.65V to 5.5V V_CC operation
±24mA output drive at V_CC=3.0V
CMOS low power consumption
Direct interface with TTL levels
Input accept voltages up to 5V
ESD protection:

HBM Exceeds 2000V
CDM Exceeds 1000V

Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type
SLP74LVC1G08KM	SOT-353-5L	SM	Halogen free	Tube
SLP74LVC1G08KMTR	SOT-353-5L	SM	Halogen free	Tape & Reel
SLP74LVC1G08KB	SOT-23-5L	VG08	Halogen free	Tube
SLP74LVC1G08KBTR	SOT-23-5L	VG08	Halogen free	Tape & Reel

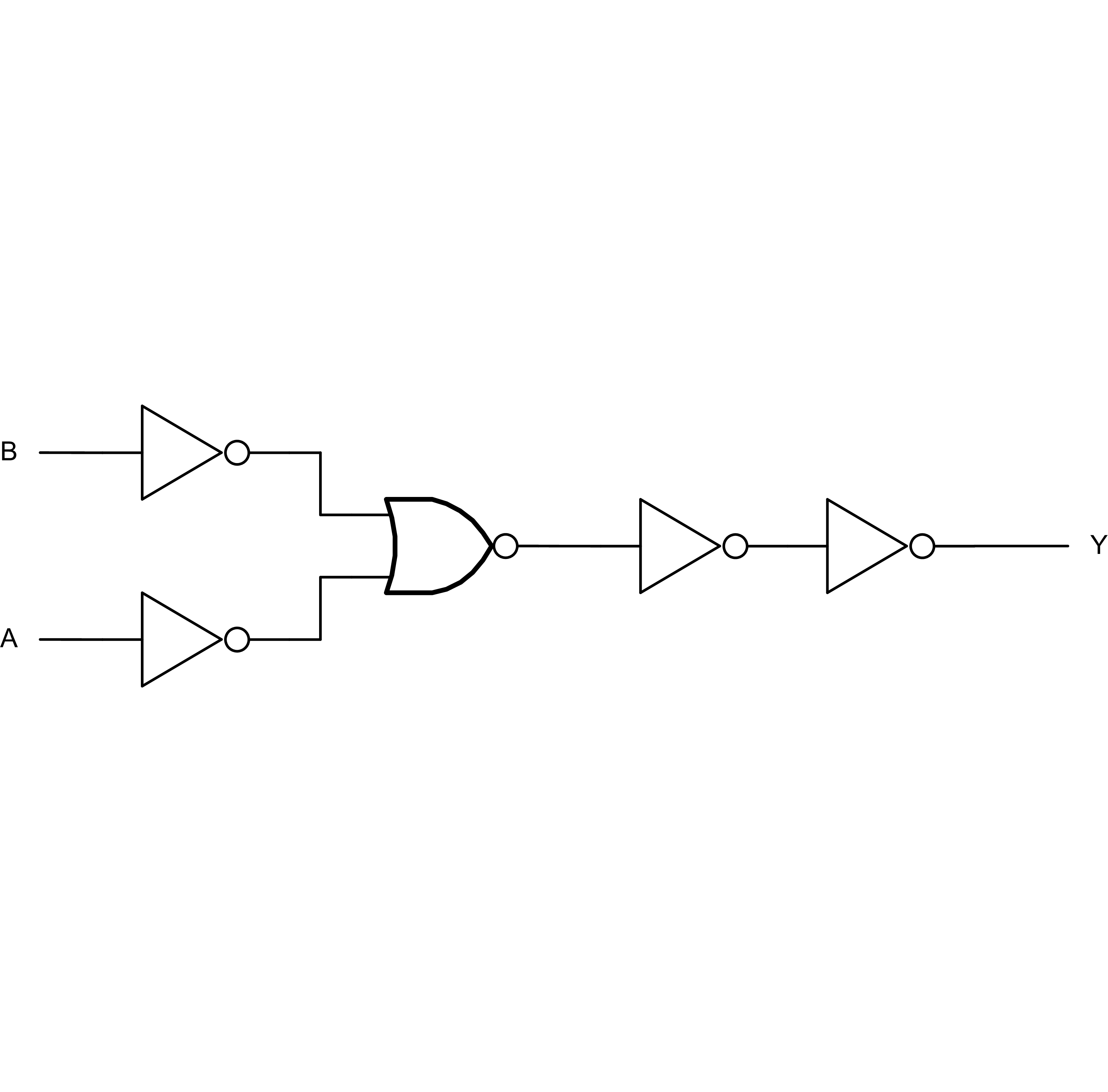

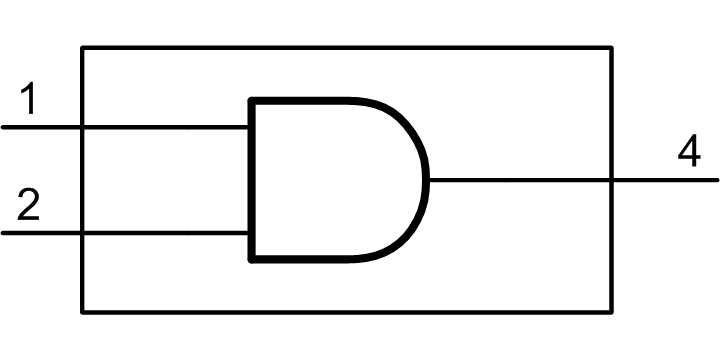

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74LVC1G08		0	2021-12-22	SLP74LVC1G08 Brief Datasheet

Packages

SOT-353-5L

SOT-23-5L
