SDM15L60RA

600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SDM15L60RA is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as air conditioner, refrigerator and dishwasher. It has embedded six low-loss IGBTs and 3-phase full-bridge gate drivers with high voltage.

The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

SDM15L60RA uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.

Main feature

Built-in low-loss 600V/15A RC IGBT
Built-in high-voltage integrated circuit of gate driver
Built-in under voltage protection, over temperature protection, over current protection and temperature output
Built-in bootstrap diode with current limiting resistor
Compatible with 3.3V, 5V MCU interface, active high
Three independent negative DC terminal for inverter current detection
Alarm signal: for low-side under voltage, over temperature and short circuit protections
Very low thermal resistance using Al₂O₃ DBC substrate
Insulation level: 2000V_rms/min

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SDM15L60RA	SDIP-26A	SDM15L60RA	Halogen Free	Tube

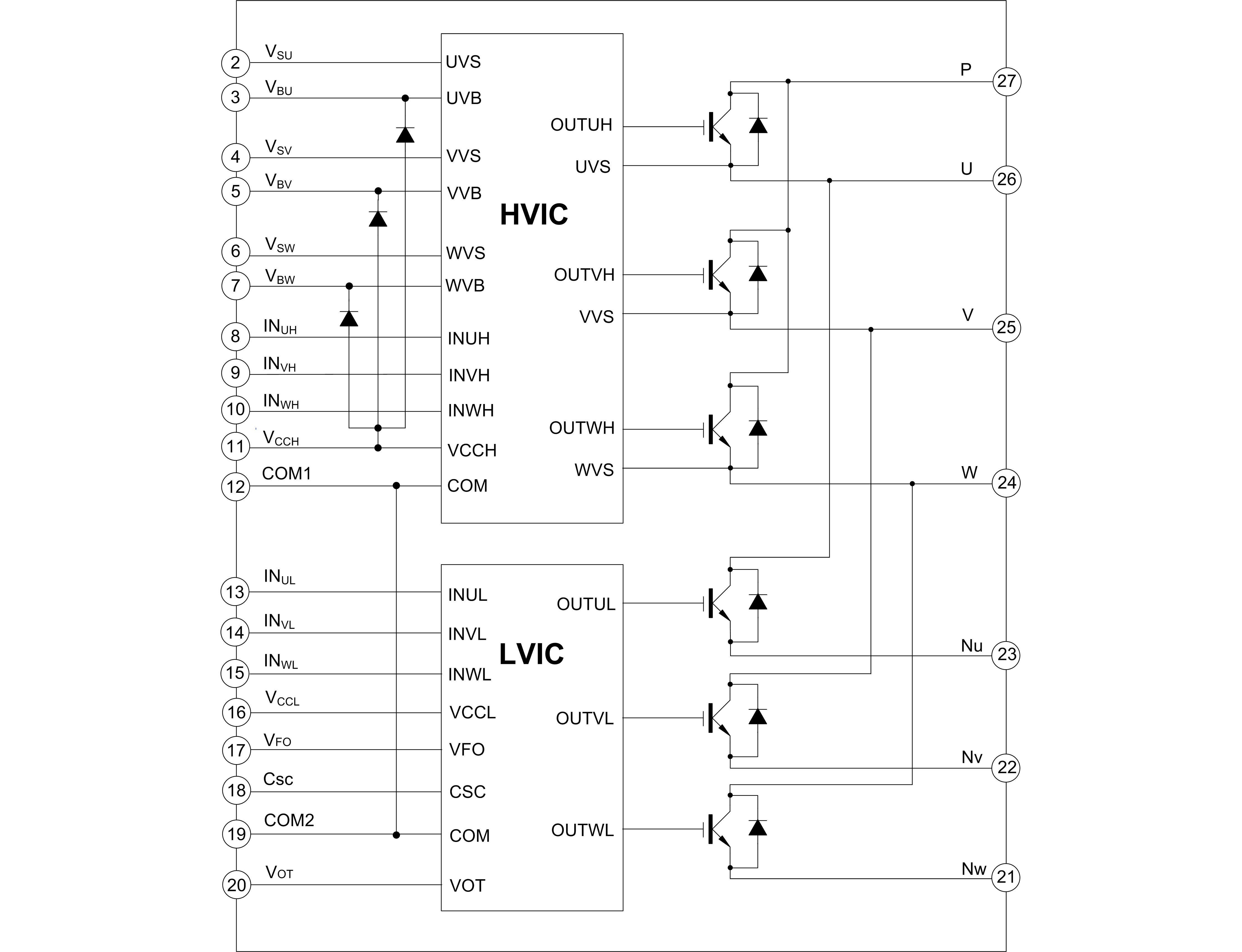

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SDM15L60RA		0	2021-12-21	SDM15L60RA Brief Datasheet

Packages

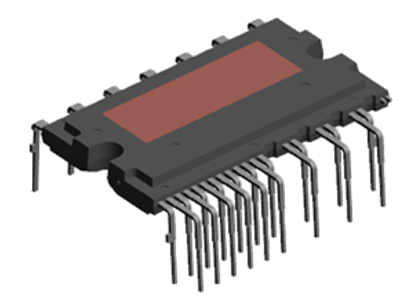

SDIP-26A
