SLP74XS0104

4-BIT AUTO DIRECTIONAL VOLTAGE-LEVEL TRANSLATOR FOR DUAL SUPPLY AND OPEN DRAIN

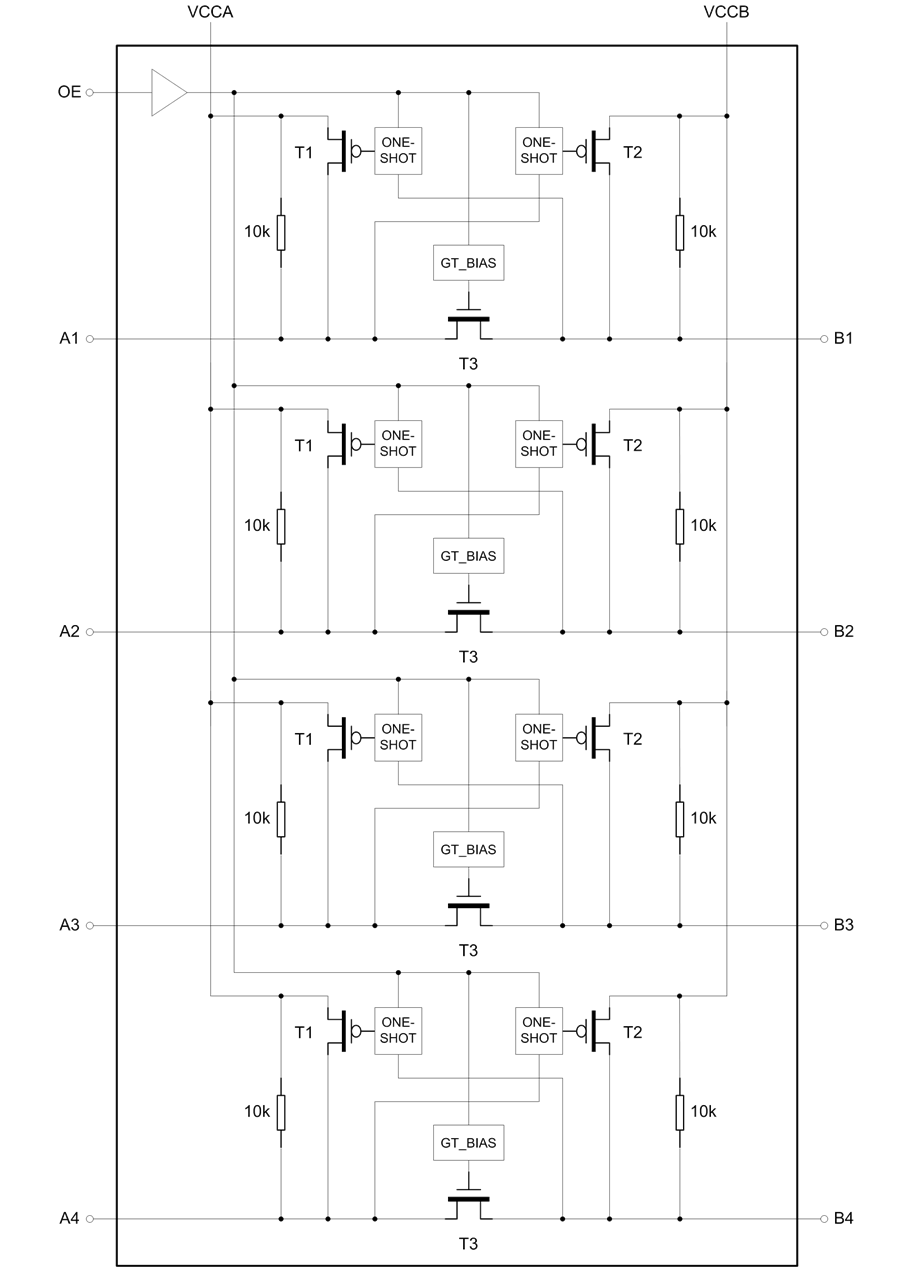

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74XS0104 is a directionless voltage-level translator specifically designed for translating logic voltage levels. It features two 4-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A) and VCC(B)).The A port is designed to track VCC(A). VCC(A) accepts any supply voltage from 1.65V to 3.6V. VCC(A) must be less than or equal to VCC(B). The B port is designed to track VCC(B). VCC(B) accepts any supply voltage from 2.3V to 5.5V. This allows the device suitable for translating between any of the voltage nodes (1.8V, 2.5V, 3.3V and 5.0V).

The SLP74XS0104 is designed so that the OE input circuit is supplied by VCCA. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Main feature
