SLP74LVC157A

QUADRUPLE 2-INPUT SELECTORS/MULTIPLEXERS

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74LVC157A is a quad 2-input multiplexer which select four bits of data from two sources under the control of a common select input (S). The four outputs present the selected data in the true (non-inverted) form. When pin E(— is HIGH, all of the outputs (1Y to 4Y) are forced LOW. When pin E(— is low，a 4-bit word is selected from one of two sources and is routed to the four outputs. The state of the common data select input (s) determines the particular register from which the data comes.

The device is the logic implementation of a 4-pole, 2-position switch, where the position of the switch is determined by the logic levels applied to pins.

The SLP74LVC157A designed for 1.65V to 3.6V operation. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in a mixed 3.3V and 5V system environment.

Main feature

Inputs accept voltage to 5.5V
Operate from 1.2V to 3.6V
CMOS low power consumption
Direct interface with TTL levels
ESD protection:

HBM Exceeds 2000V
CDM Exceeds 1000V

Latch-up performance exceeds 250mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74LVC157ANBTR	QFN-16-2.5X3.5X0.85-0.5	C157A	Halogen free	Tape & Reel
SLP74LVC157AJSTR	TSSOP-16-225-0.65	C157A	Halogen free	Tape & Reel

Block Diagram

SLP74LVC157A .png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74LVC157A		0	2021-06-21	SLP74LVC157A Brief Datasheet

Packages

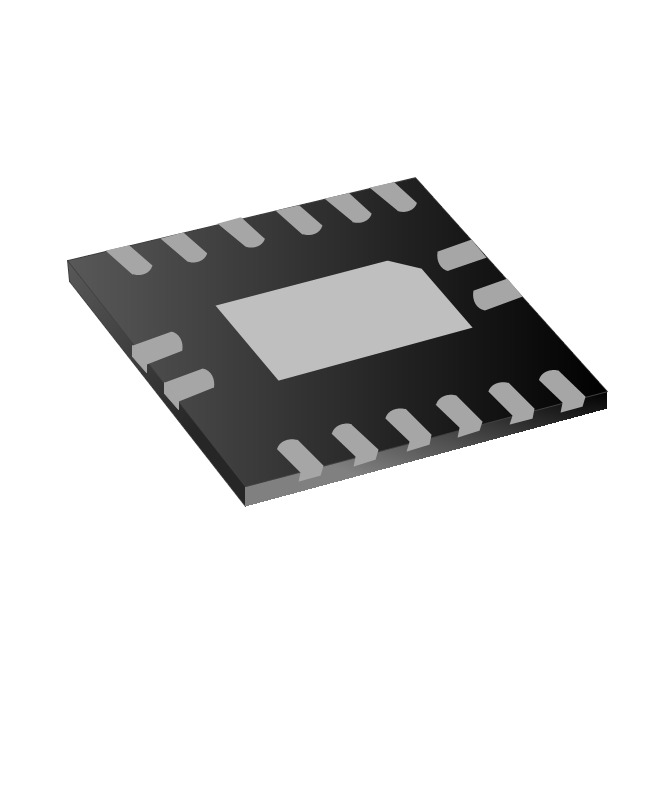

QFN-16-2.5X3.5X0.85-0.5

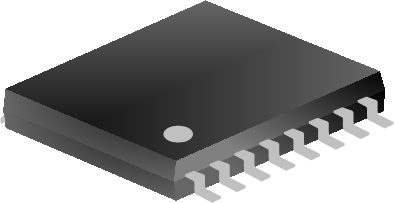

TSSOP-16-225-0.65
