SA2803

DARLINGTON ARRAY DRIVER IC

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SA2803 is high-voltage, high-current darlington driver IC composed of 8 NPN darlington pairs. All units share the emitter in common, and each unit adopts open-collector output. A 2.7KΩ resistor is connected to each darlington pair in serial, which is compatible with TTL and 5V CMOS for data processing without logic buffer.

Sink current of SA2803 is up to 500mA, when it is off state, the withstand voltage is 50V and the output can runs with high load current, which provides solutions for various interface.

Main feature

Wide operating voltage range
8-ch high-gain darlington array
High output voltage (up to 50V)
High output current (up to 500mA)
Able to connect to TTL, CMOS, PMOS directly
Clamp diodes for switching inductive loads

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type

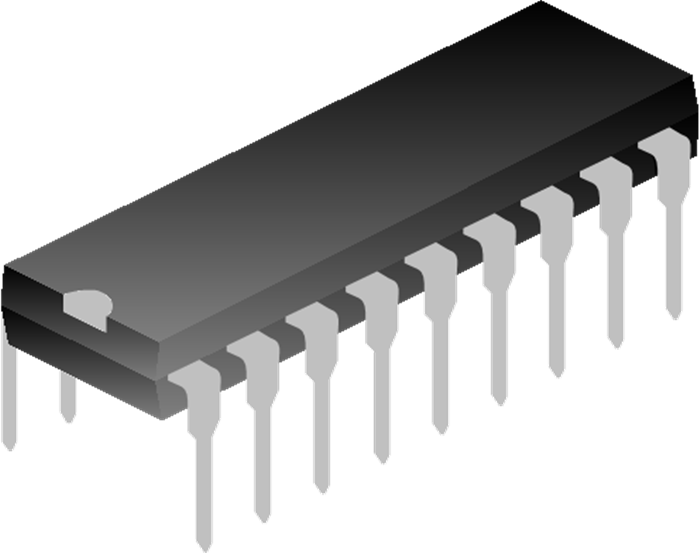

SA2803DE	DIP-18-300-2.54	SA2803DE	Halogen free	Tube
SA2803SS	SOP-18-375-1.27	SA2803SS	Halogen free	Tube
SA2803SSTR	SOP-18-375-1.27	SA2803SS	Halogen free	Tape&Reel

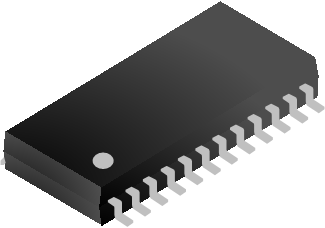

SA2803RE	SSOP-24-225-0.635	SA2803RE	Halogen free	Tube
SA2803RETR	SSOP-24-225-0.635	SA2803RE	Halogen free	Tape&Reel

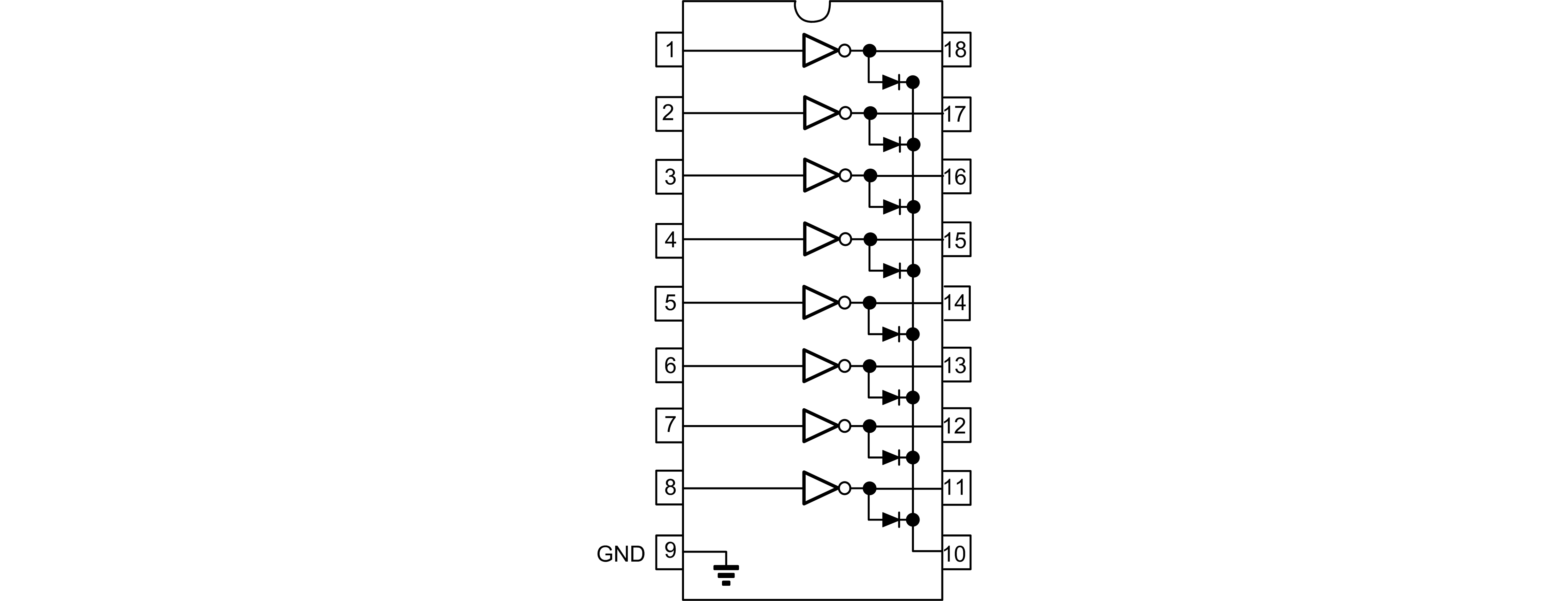

Block Diagram

SA2803 中英文同.png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SA2803		0	2021-06-04	SA2803 Datasheet

Packages

DIP-18-300-2.54

SOP-18-375-1.27

SSOP-24-225-0.635
