SDM03C60DB2

600V/3A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SDM03C60DB2 is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving.

The under voltage, short circuit protections and temperature output integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

SDM03C60DB2 is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.

Main feature

Built-in 600V/3A fast recovery MOSFET
Built-in high-voltage integrated circuit of gate driver
Built-in under voltage protections, over current protection and temperature output
Built-in shut-down input
Built-in inter-lock function
Built-in bootstrap diode with current limiting resistor
Compatible with 3.3V, 5V MCU interface, active high
Three independent negative DC terminals for inverter current detection
Isolation rating: 1500Vrms/min

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SDM03C60DB2	DIP-25B	SDM03C60DB2	Halogen Free	Tube

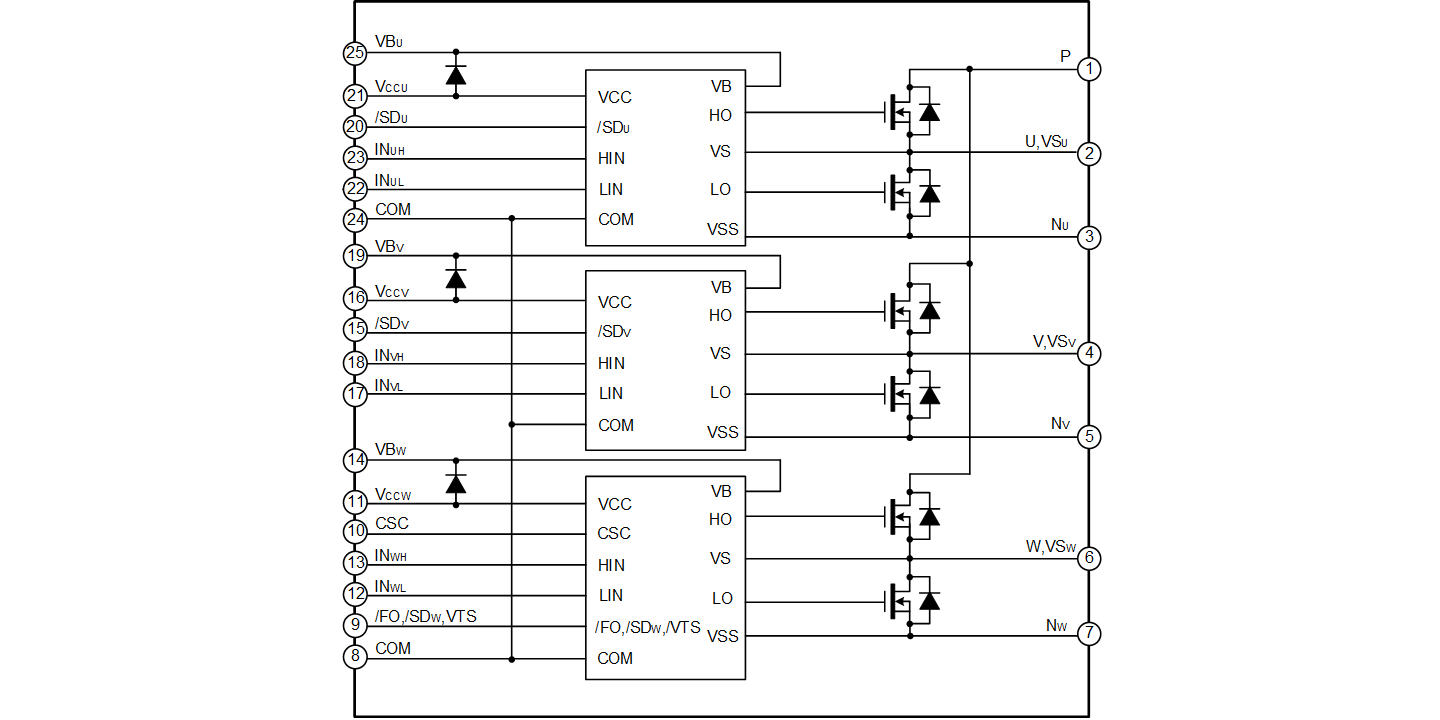

Block Diagram

SDM03C60DB2 －中英文同.png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SDM03C60DB2		0	2021-05-18	SDM03C60DB2 Brief Datasheet
