SA3845

CURRENT MODE PWM CONTROLLER

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SA3845 provides the necessary features to implement off-line or DC to DC fixed frequency current mode control schemes with a minimal external parts count. Internally implemented circuits include under-voltage lockout featuring start up current less than 0.5mA, a precision reference trimmed for accuracy at the error amp input, logic to insure latched operation, a PWM comparator which also provides current limit control and a totem pole output stage designed to source or sink high peak current. The output stage, suitable for driving N channel MOSFETs, is low in the off state.

Main feature

Optimized for off-line and DC to DC converts
Low start up current(<0.5mA)
Automatic feed forward compensation
Pulse-by-Pulse current limiting
Enhanced load response characteristics
Under-voltage lockout with hysteresis
Double pulse Suppression
High current totem pole output
Internally trimmed bandgap reference
500kHz operation

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SA3845SA	SOP-8-225-1.27	SA3845	Halogen free	Tube
SA3845SATR	SOP-8-225-1.27	SA3845	Halogen free	Tape&Reel

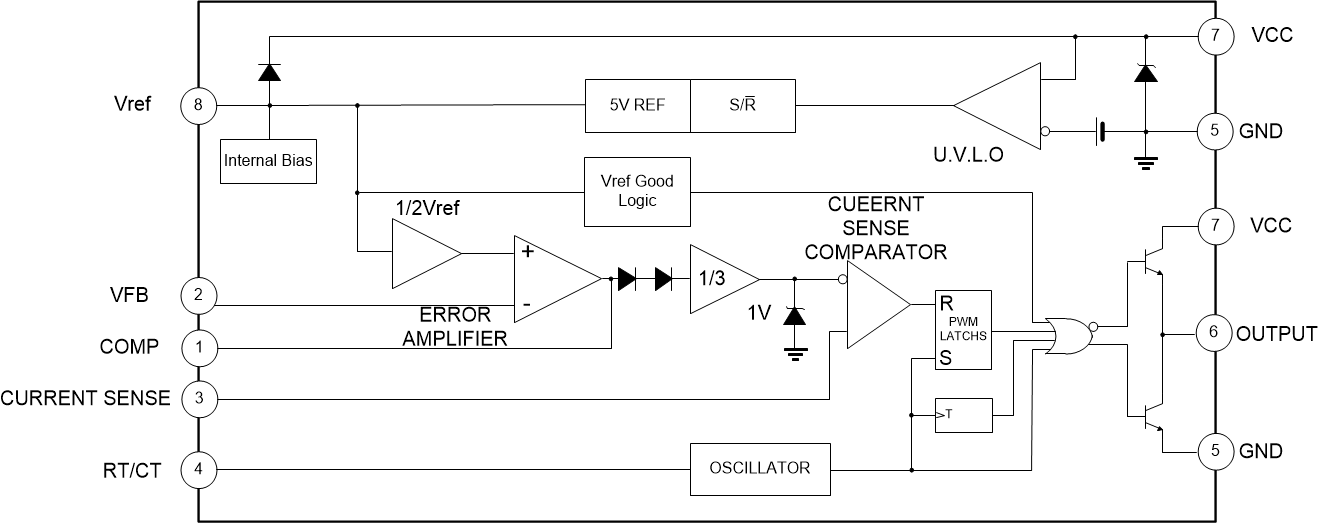

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SA3845		0	2021-07-16	SA3845 Brief Datasheet

Packages

SOP-8-225-1.27

DIP-8-300-2.54
