SDM15G60TA

600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SDM15G60TA is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving such as air conditioner, washing machine and low power inverter. It has embedded six low-loss IGBTs and 3-phase full-bridge gate drivers with high voltage.

The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

SDM15G60TA uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.

Main feature

Built-in low-loss 600V/15A IGBT;
Built-in high-voltage integrated circuit of gate driver;
Built-in under voltage protection, over temperature protection, over current protection and temperature output;
Built-in bootstrap diode with current limiting resistor;
Compatible with 3.3V, 5V MCU interface, active high;
Three independent negative DC terminal for inverter current detection;
Alarm signal: for low-side under voltage, over temperature and short circuit protections;
Very low thermal resistance using Al2O3 DBC substrate;
Insulation level: 1500Vrms/min

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SDM15G60TA	DIP-24HL	SDM15G60TA	Halogen Free	Tube

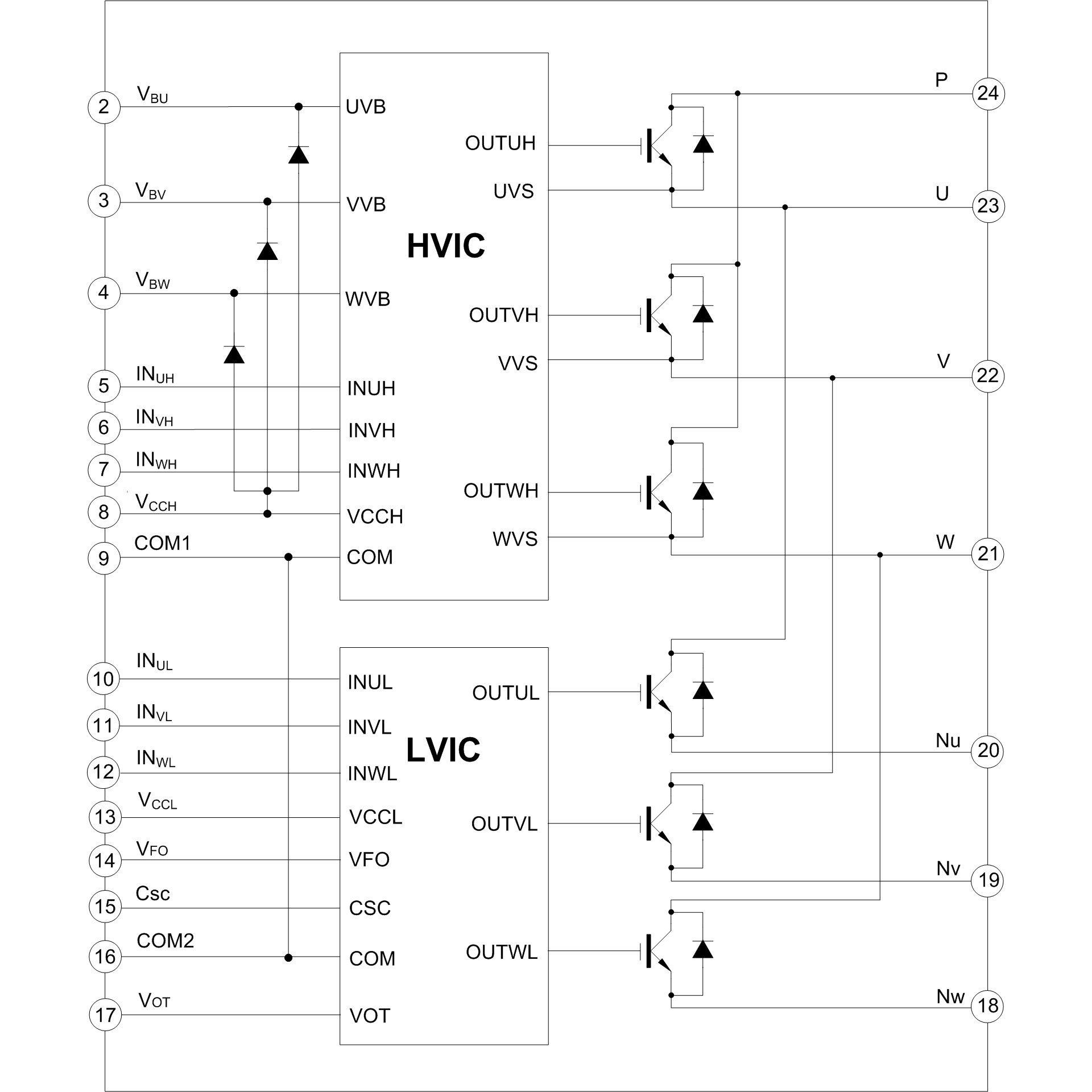

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SDM15G60TA		0	2021-02-23	SDM15G60TA Brief Datasheet
