SDH8595AS

HIGH PRECISION CC/CV PRIMARY SIDE POWER CONTROLLER WITH BUILT-IN MOSFET

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SDH8595AS is offline PSR power controller which operates in PFM to achieve high performance and high efficiency. It integrates a 600V MOSFET and has high-voltage startup function . Both the output current and voltage are sensed by primary side.

SDH8595AS removes the need for optocoupler & TL431 while achieving excellent line and load regulation. It also eliminates the need for loop compensation while maintaining stability over all operation conditions.

SDH8595AS supports applications up to 15W.

Main feature

Primary-side Feedback Eliminates Opto-isolators and Simplifies Design
High Precision Constant Voltage and Current Regulation at Universal AC Input
Programmable CV and CC Regulation
Programmable Cable Drop Compensation
Integrated 600V MOSFET
Integrated High-Voltage Startup
Low Standby Power
Built-in Line Voltage and Primary Winding Inductance Compensation
Built-in Leading Edge Blanking(LEB)
PFM Operation for Efficiency Improving
Comprehensive Protection Coverage with Auto-recovery
On-chip OTP
VCC Over Voltage Protection
VCC Under Voltage Lockout with Hysteresis(UVLO)
Cycle-by-Cycle Current Limiting
Output Short Circuit Protection
Maximum on time protection

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SDH8595ASTR	SOP-7-225-1.27	SDH8595AS	Halogen free	Tape & Reel
SDH8595AS	SOP-7-225-1.27	SDH8595AS	Halogen free	Tube

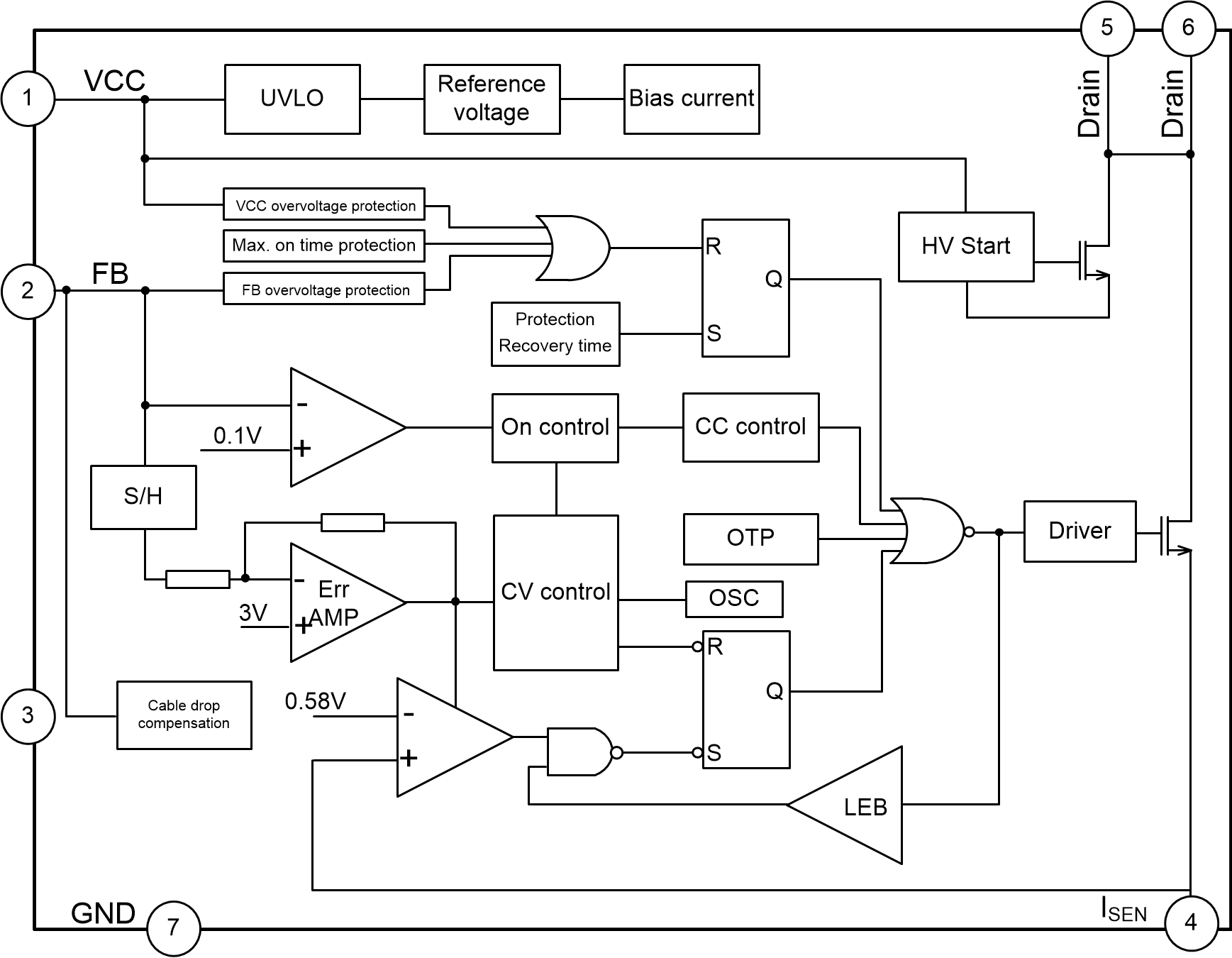

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SDH8595AS		0	2020-06-22	SDH8595AS Brief Datasheet

Packages

SOP-7-225-1.27
