SDH8593AS

HIGH PRECISION CC/CV PRIMARY SIDE POWER SWITCH WITH INTEGRATED MOSFET

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SDH8593AS is a high performance off-line PSR power switch which operates in PFM to achieve high performance and high efficiency. It integrates a 650V MOSFET and high voltage startup to decrease physical volume. Both the output current and voltage are sensed by primary side signal process.

SDH8593AS removes the need for secondary feedback circuitry while achieving excellent line and load regulation. It also eliminates the need for loop compensation while maintaining stability over all operation conditions. SDH8593AS is suitable for the output power of 8~10W .

Main feature

Primary-side Feedback Eliminates Opto-isolators
High Precision Constant Voltage and Current Regulation at Universal AC Input
Ultra Low Start-up Current
Programmable CV and CC Regulation
Programmable Cable Drop Compensation
Integrated 650V MOSFET
Integrated High Voltage Startup
Low Standby Power
Built-in Line Voltage and Primary Winding Inductance Compensation
Built in Leading Edge Blanking(LEB)
No External Compensation Required
On-chip OTP
VCC Over Voltage Protection
Output Over Voltage Protection
VCC Under Voltage Lockout with Hysteresis(UVLO)
Cycle-by-Cycle Current Limiting
Output Short Circuit Protection
Over Current Protection
Maximum on time protection

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SDH8593ASTR	SOP-7-225-1.27	SDH8593AS	Halogen free	Tape & Reel
SDH8593AS	SOP-7-225-1.27	SDH8593AS	Halogen free	Tube

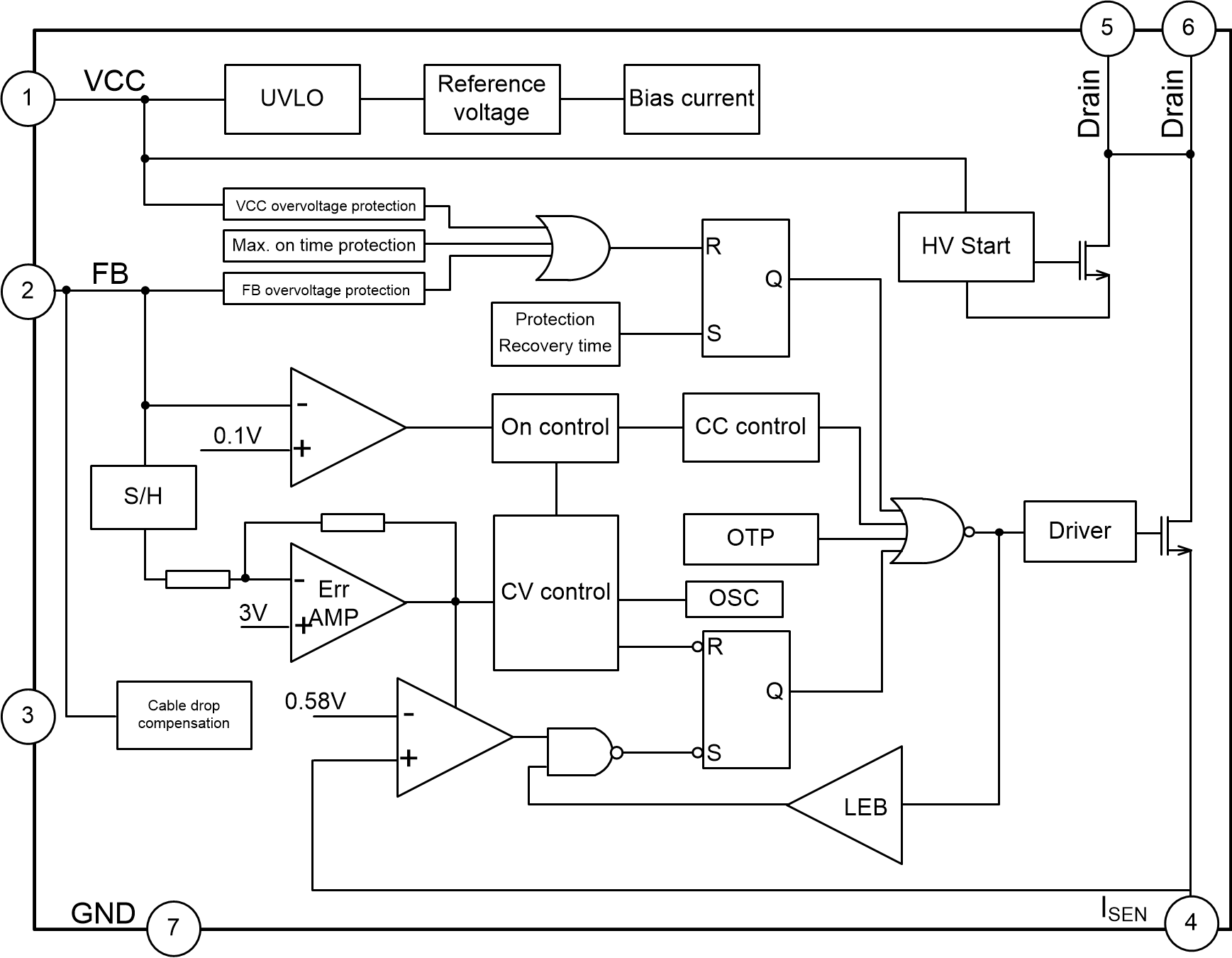

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SDH8593AS		0	2020-06-22	SDH8593AS Brief Datasheet

Packages

SOP-7-225-1.27
