?SA3846

CURRENT MODE PWM CONTROLLER

Description Main feature Product specification classification Internal block diagram Relevant package outline drawing

The SA3846 adopts fixed-frequency current mode control, which improves the system’s line voltage regulation and load response characteristics, as well as simplifies the design of control loop. The SA3846 has built-in precision bandgap adjustable reference power supply, high-frequency oscillator, error amplifier, differential current detection amplifier, undervoltage lockout circuit, and soft startup circuit. It provides

functions such as automatic symmetry correction for push-pull converter, parallel operation, external shutdown, double pulse suppression, dead time adjustment, etc.

Main feature

Automatic feed forward compensation
Programmable controllable pulse-by-pulse current limit
Automatic symmetry correction for push-pull converter
Good load response characteristics
Parallel operation supported, applicable to module system
Built-in differential current detection amplifier, wide common mode input range
Double pulse suppression
High current totem pole output, output peak current of 500mA
Precision bandgap reference power supply, with accuracy of ±1%
Built-in undervoltage lockout circuit
Built-in soft startup circuit
External shutdown
Operating frequency: up to 500kHz

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type
SA3846DC	DIP-16-300-2.54	SA3846DC	Halogen free	Tube
SA3846SE	SOP-16-375-1.27	SA3846SE	Halogen free	Tube
SA3846SETR	SOP-16-375-1.27	SA3846SE	Halogen free	Tape&Reel

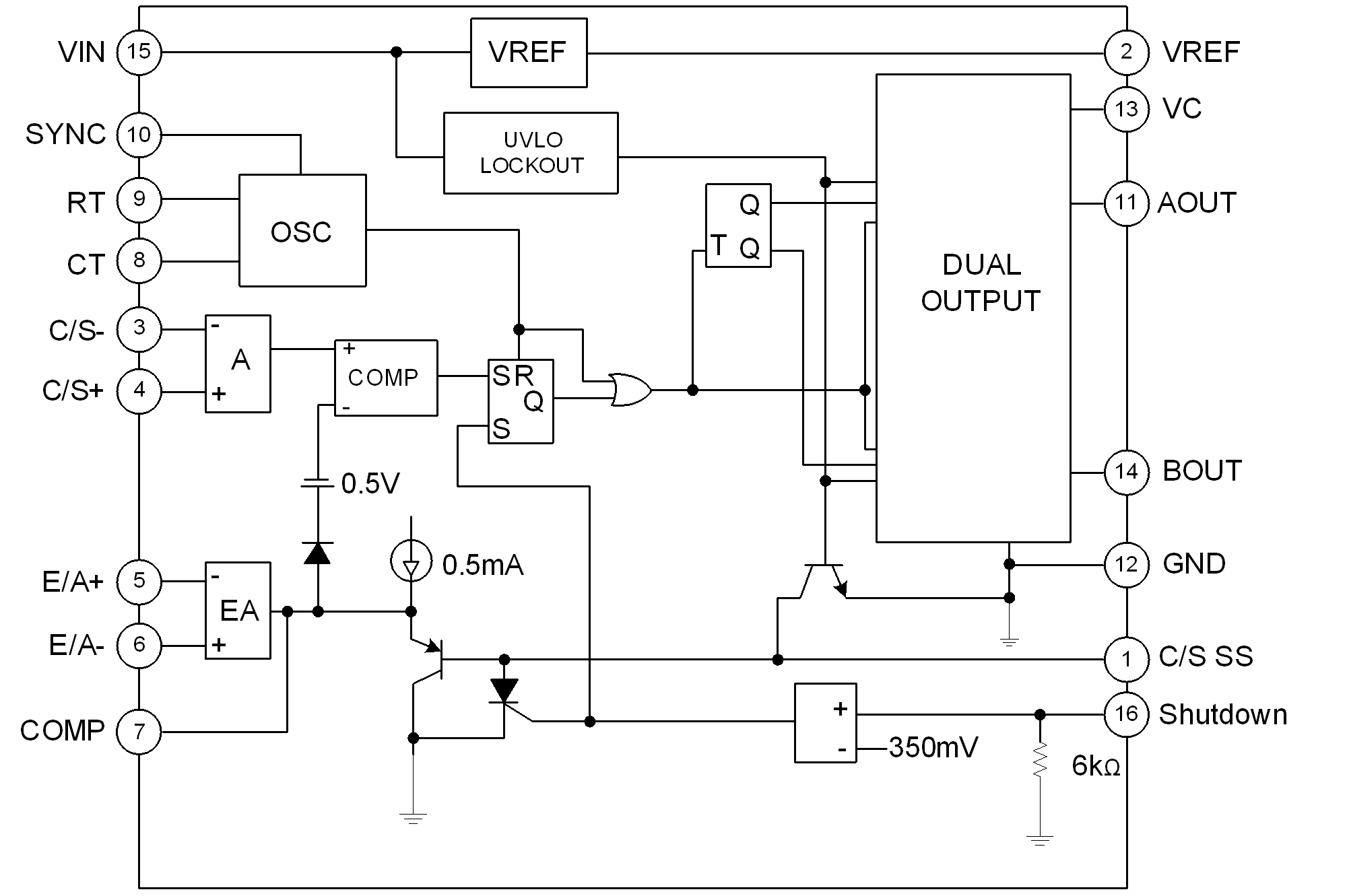

Block Diagram

Packages

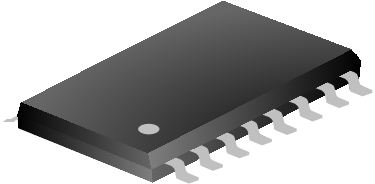

SOP-16-375-1.27

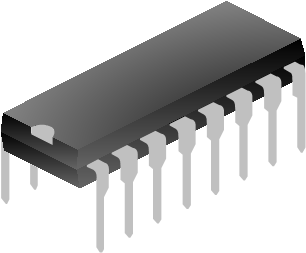

DIP-16-300-2.54
