SD4938

150V CURRENT MODE PWM CONTROLLER

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

SD4938 is a current mode PWM controller with 150V MOSFET used for SMPS.

SD4938 integrates high-voltage start-up circuit. It enters burst mode at light load to reduce the system standby power dissipation; the frequency reduction function optimizes the conversion efficiency at light load; the soft startup function reduces the stress of device to avoid transformer saturation.

SD4938 features various protections, including VDD undervoltage protection, VDD overvoltage protection, lead edge blanking, over current protection, over temperature protection, etc. Meanwhile, if any protection occurs, the circuit will continue to restart automatically until the system recovers.

Main feature

Input voltage: 20V~150V
Adjustable output voltage including: 12V, 15V and 18V
Output current: 0.5A
High-voltage self-startup
Burst mode at light load
Frequency reduction
Soft startup
VDD undervoltage protection
VDD overvoltage protection
Leading edge blanking
Output overload protection
Over current protection
Over temperature protection

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SD4938	SOP-8-225-1.27	SD4938	Halogen free	Tube
SD4938TR	SOP-8-225-1.27	SD4938	Halogen free	Tape & Reel

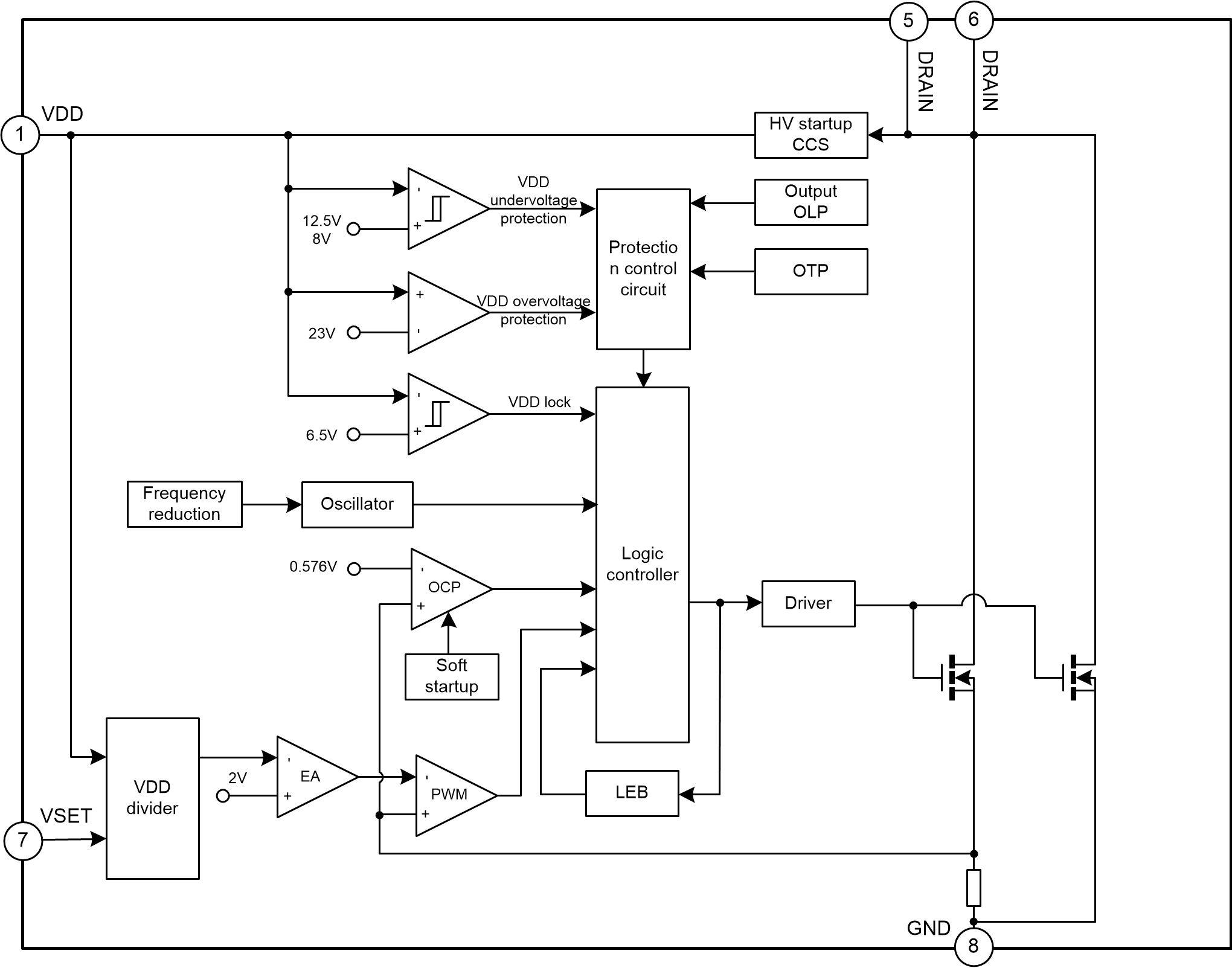

Block Diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SD4938		0	2020-04-03	SD4938 Brief Datasheet

Packages

SOP-8-225-1.27
